Display and PLC in one WS320-A&3-22MR PLC and HMI in one machine, save space and money password protection, RTC optional 32-bit core chip, high speed, huge space. power off storage function 12CH I/O input, 10CH relay output built-in 6CH AD, 2CH DA built-in 6CH 3K counting, 6CH 60K counting optional PLC support GX Developer or GX Works2; HMI supports OP8.0W software"

Display and PLC in one WS320-A&3-22MT PLC and HMI in one machine, save space and money password protection, RTC optional 32-bit core chip, high speed, huge space. power off storage function 12CH I/O input, 10CH transistor output built-in 6CH AD, 2CH DA built-in 6CH 3K counting, 6CH 60K counting optional built-in 4CH 100K high speed pluse(8CH 100K optional), supports step driver. PLC support GX Developer or GX Works2; HMI supports OP8.0W software

Display and PLC in one WS320-A&3-22MRT PLC and HMI in one machine, save space and money password protection, RTC optional 32-bit core chip, high speed, huge space. power off storage function 12CH I/O input, 4CH transistor/6CH relay output built-in 6CH AD, 2CH DA built-in 6CH 3K counting, 6CH 60K counting optional built-in 4CH 100K high speed pluse(8CH 100K optional), supports step driver. PLC support GX Developer or GX Works2; HMI supports OP8.0W software

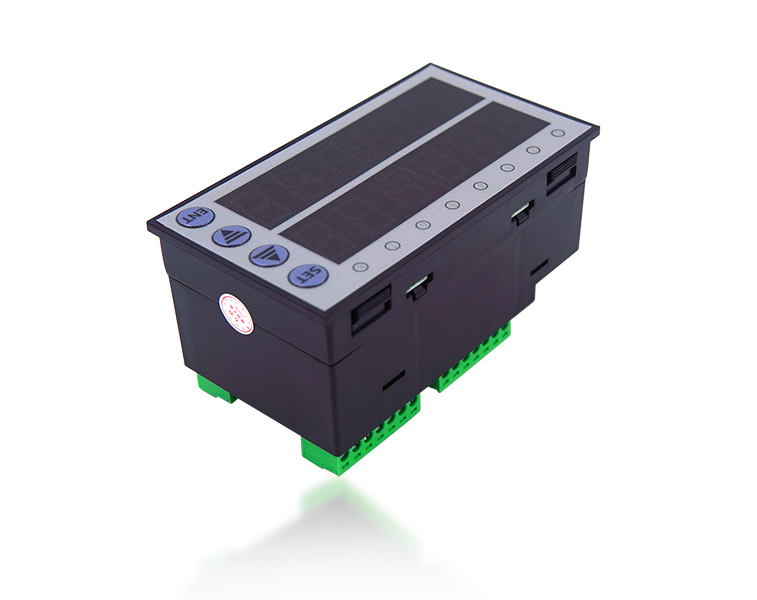

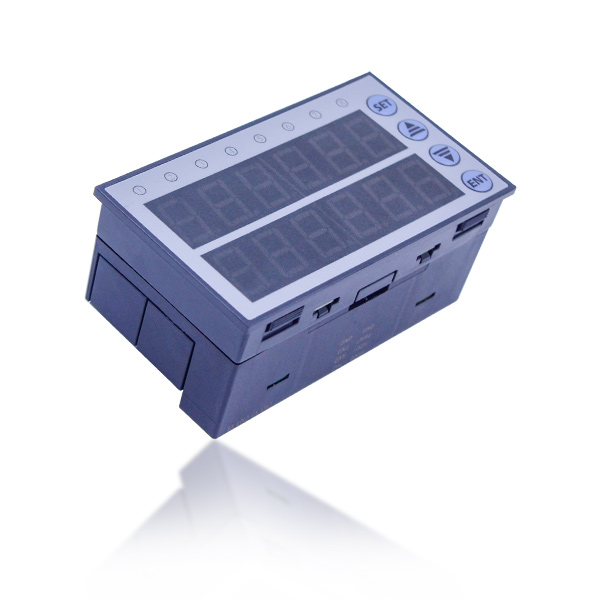

It works for small space with simple request. User friendly operation, no need programming. 2 group 6 digits big size display. Functional and common buttons in the same. Eight LED indicator for Alarm/work completion and more functions. Enable to modify read&write address. No communication in 5 seconds after switched ON, shows NO PLC.

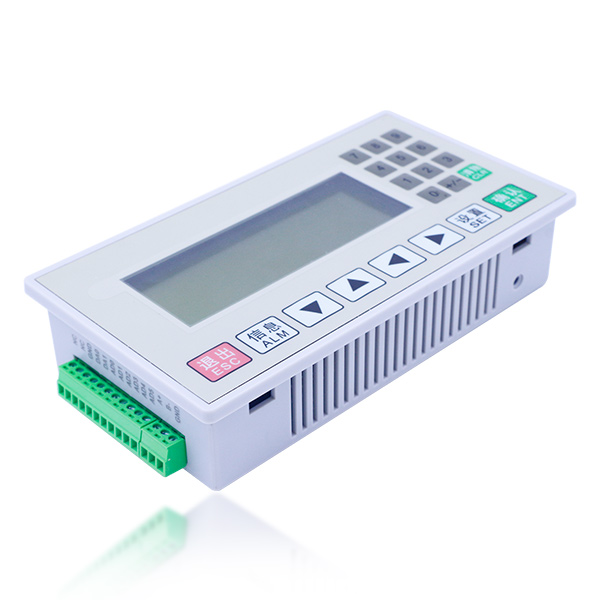

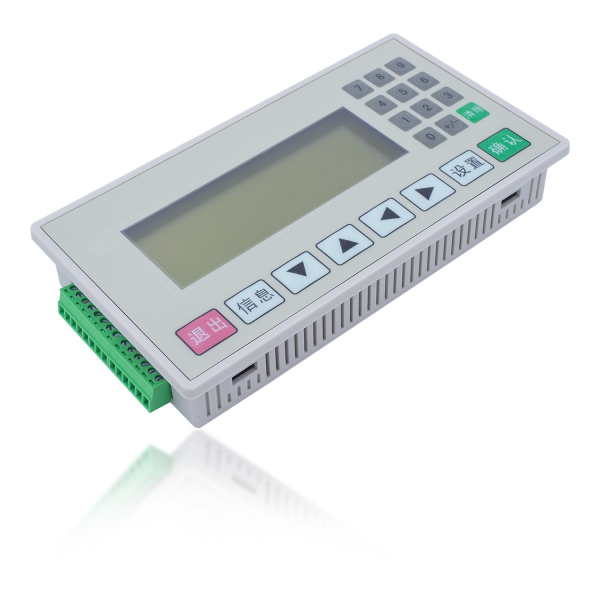

Integrate logic control and HMI to save space and wiring; Cpu8 bit processor; 6-way switching value input; 4-way relay output; With 1 channel of analog input 0-10V; With 2-channel 3K counting; Support power-off storage without worrying about data loss; The built-in real-time clock can make the clock more accurate, and the time limit can be set; The display adopts STN liquid crystal display with background light; 24 characters can be displayed × 4 lines; "PLC part supports Mitsubishi GX developer or GX works 2 software ladder programming, The display part is programmed with op8.0 software. "

Integrate logic control and HMI to save space and wiring; Cpu8 bit processor Support power-off storage without worrying about data loss; 6-way switching value input; 4-way transistor type output; With 3 channels of analog input 0-10V; It is equipped with 2 channels of 3K counting, and 2 channels of 30K counting are optional; Support 2 channels of 100k pulse output; The built-in real-time clock can make the clock more accurate, and the time limit can be set; The display adopts STN liquid crystal display with background light; 24 characters can be displayed × 4 lines. The PLC part supports Mitsubishi GX developer or GX works 2 software ladder programming, and the display part adopts op8.0 software programming, which is simple and easy to understand.
