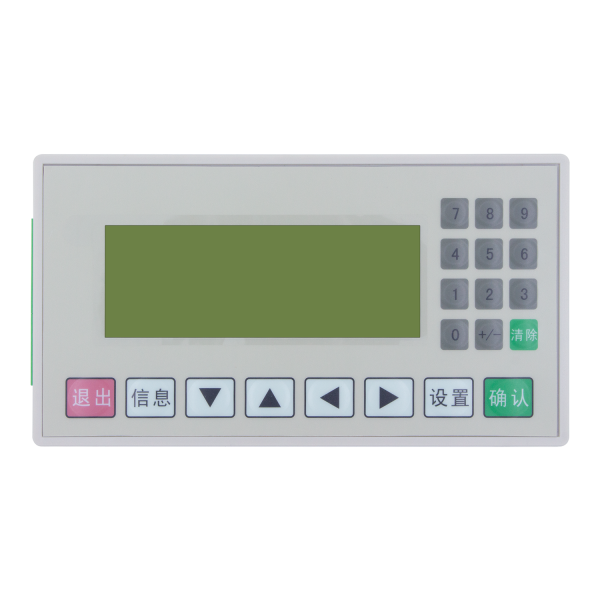

Integrate logic control and HMI to save space and wiring; Cpu8 bit processor; 6-way switching value input; 4-way relay output; With 1 channel of analog input 0-10V; With 2-channel 3K counting; Support power-off storage without worrying about data loss; The built-in real-time clock can make the clock more accurate, and the time limit can be set; The display adopts STN liquid crystal display with background light; 24 characters can be displayed × 4 lines; "PLC part supports Mitsubishi GX developer or GX works 2 software ladder programming, The display part is programmed with op8.0 software. "
| Type | WS320-A&1-10MR | WS320-A&1-10MT | |
| The whole machine part | Overall DIM L*W（mm） | 172*94*30 | 172*94*30 |
| Hole DIM L*W（mm） | 165*86 | 165*86 | |
| Text part | Display screen | 3.7"STN LCD | 3.7"STN LCD |
| Tinge | monochrome | monochrome | |
| Backlight | Long life LED white light | Long life LED white light | |
| memorizer | 64KB Flash ROM | 64KB Flash ROM | |
| Dropped connections are allowed | 20ms within | 20ms within | |
| Insulation resistance | Exceed 10m Ω @500 VDC | Exceed 10m Ω @500 VDC | |
| Cooling method | Natural cold air | Natural cold air | |
| Display size | 101 x 36 mm | 101 x 36 mm | |
| Degree of protection | IP65 (Front panel) | IP65 (Front panel) | |
| LCM type | Blue Screen Yellow screen | Blue Screen Yellow screen | |
| LCM life | 25+2 C,65+10%RH The conditions are as follows 50000 hours or more | 25+2 C,65+10%RH The conditions are as follows50000 hours or more | |
| resolution | 192 x 64 PX(Support 4 lines x12 Chinese character display) | 192 x 64 PX(Support 4 lines x12 Chinese character display) | |
| contrast | Positioner adjustment | Positioner adjustment | |
| CPU | 8-bit processor | 8-bit processor | |
| Function buttons | 20 can be customized | 20 can be customized | |
| brightness | 60 cd/m2 | 60 cd/m2 | |
| Programming software | OPV8.0 | OPV8.0 | |
| PLC part | Output type | Relay | Transistor |
| Supply voltage | DC 24V | DC 24V | |
| Input points | 6 | 6 | |
| Output points | 4 | 4 | |
| Output current | 5A | 1A | |
| load | 24V 220V | 24V | |
| Analog input | 1AD 0-10V | 3AD 0-10V | |
| Analog output | N/A | N/A | |
| Count | 2/3K | 2/3K，Optional 2/30K | |
| Pulse output | N/A | 2/100K | |
| Communication port | COM1:RS232 | COM1:RS232 | |
| M0DBUS | N/A | N/A | |
| Clock | Optional | Optional | |
| Float point | N/A | N/A | |
| Memory capacity | 8000steps | 8000steps | |
| Download Speed | 9.6Kb | 9.6Kb | |
| Download method | Download directly | Download directly | |
| Programming software | GX Developer/GX Works2 | GX Developer/GX Works2 | |
| Step motor | N/A | supported | |
| servo | N/A | supported | |
| Installation | Complete machine installation | Complete machine installation |
