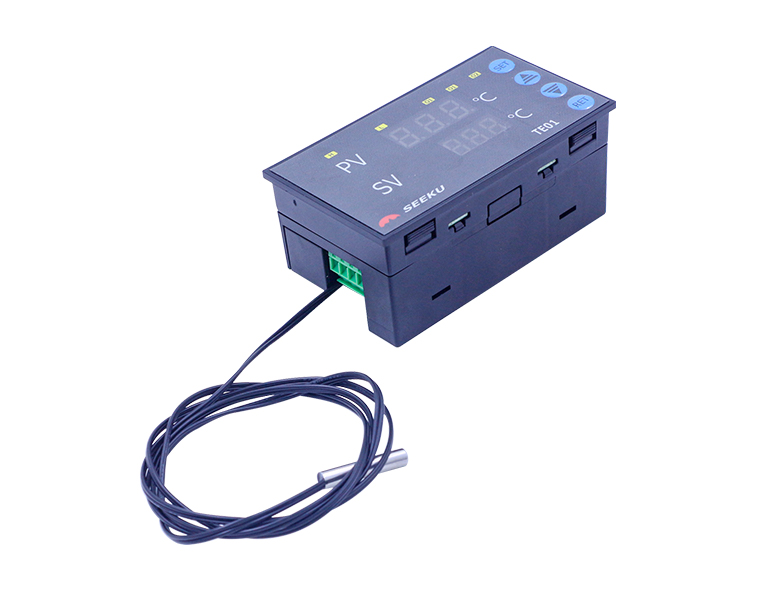

1. Simplicity: * Switch ON with PV/SV value * One step to set SV value * One step to use the controller 2. 2 control way: ON/OFF; PID9(no self-tunning) 3. Heating or Cooling mode optional * Heating: Environmental temperature lower than set, switch on the heating * Cooling: Environmental temperature higher than set, switch on the cooling 4. Exceeding high or low temperature alarm; voltage leakage alarm; NTC wire cutting alarm. 5,Timing; power saving function.
Model | TE02-1 | TE02-2 |
Power supply | 220VAC(TEO2-1) | 24VDC(TEO2-2) |
Dimension | 90*55*45mm | 90*55*45mm |
Weight | 100g | 100g |
Environmental temperature | 0-50℃(No ice/condensation) | 0-50℃(No ice/condensation) |
Display | Black backlight and red digital tube | Black backlight and red digital tube |
Alarm display | From main interface, SV digital tube glittering with alarm code | From main interface, SV digital tube glittering with alarm code |
Alarm function | Exceeding high or low temperature alarm; voltage leakage alarm; NTC wire cutting alarm | Exceeding high or low temperature alarm; voltage leakage alarm; NTC wire cutting alarm |
Alarm output | Relay 10A 250VAC | Relay 10A 250VAC |
Precision | ±1'℃ | ±1'℃ |
Scope | -50~120"℃ | -50~120"℃ |
Precision grade | 0.6%F.S | 0.6%F.S |
Input | NTC 10K 3950 | NTC 10K 3950 |
Output | Relay 10A 250VAC | Relay 10A 250VAC |
