DC24V Power supply DC24V Memory capacity 8000 steps 32-bit high performance CPU, running speed Optional 2-way PT100/2-way K-type thermocouple /NTC temperature measurement without transmitter Support MODBUS communication, can expand multi-channel IO, analog capacity Support interrupt, save with power off Optional real-time clock, timing lock machine 6 analog inputs, default 3 voltage, 3 current; 2 analog output Support high-speed counting 6 channels 3K, or select 2 channels 60K; 2 100K high-speed pulse output, support stepper servo Support Mitsubishi GX Developer or GX Works 2 software ladder diagram programming, simple and easy to understand

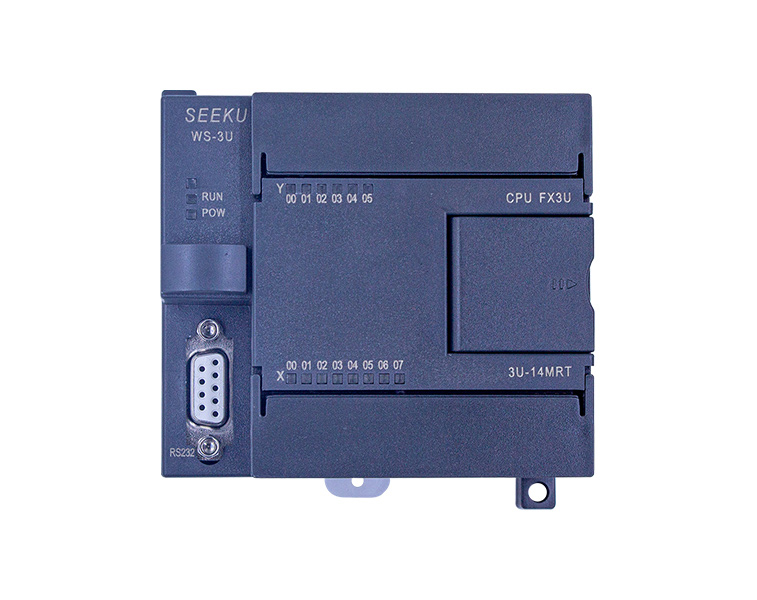

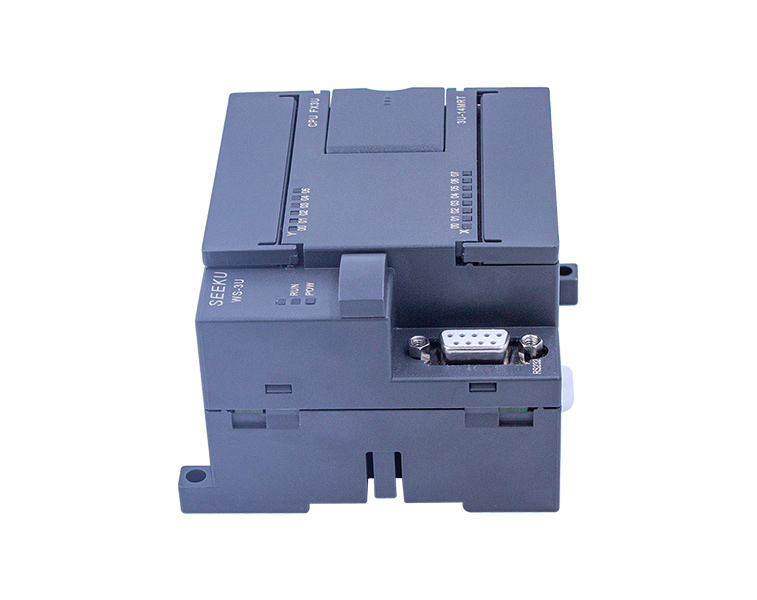

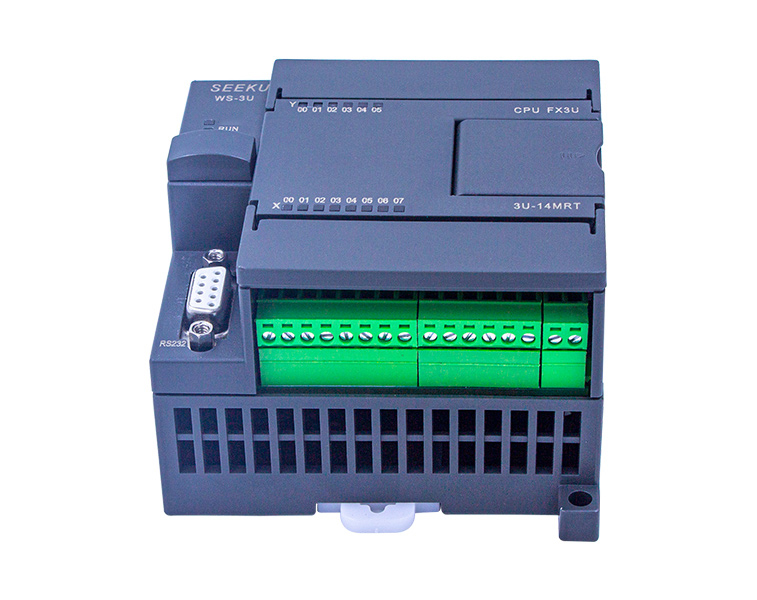

Model NO. | WS3U-14MR-B | WS3U-14MT-B | WS3U14-MRT-B |
Output type | Relay | Transistor | Mixed output |
Inputs | 8 | 8 | 8 |
Outputs | 6 | 6 | 2 Channel Transistor |
Supply voltage | DC 24V | DC 24V | DC 24V |
Output current | 5A | 1A | MT 1A |
Load | 24V 220V | 24V | 24V 220V |
Analog in | 3AD 0-10V+3AD 4-20MA | ||
Analog out | 2DA 0-10V | ||
Counting | 2/3K default2/60K | ||
Pulse out | N/A | 2/100K | 2/100K |
RS485 communication | Optional | Optional | Optional |
M0DBUS | Optional | Optional | Optional |
Time | supported | supported | supported |
Float point | N/A | N/A | N/A |
Capacity | 8000steps | 8000steps | 8000steps |
Download Speed | 38.4Kb | 38.4Kb | 38.4Kb |
Download port | RS232 | RS232 | RS232 |
Programming software | GX Developer/GX Works2 | GX Developer/GX Works2 | GX Developer/GX Works2 |
Stepping motor | Not supported | supported | supported |
Servo motor | Not supported | supported | supported |
Communicate with OP320 | supported | supported | supported |
Communicate with HMI | supported | supported | supported |

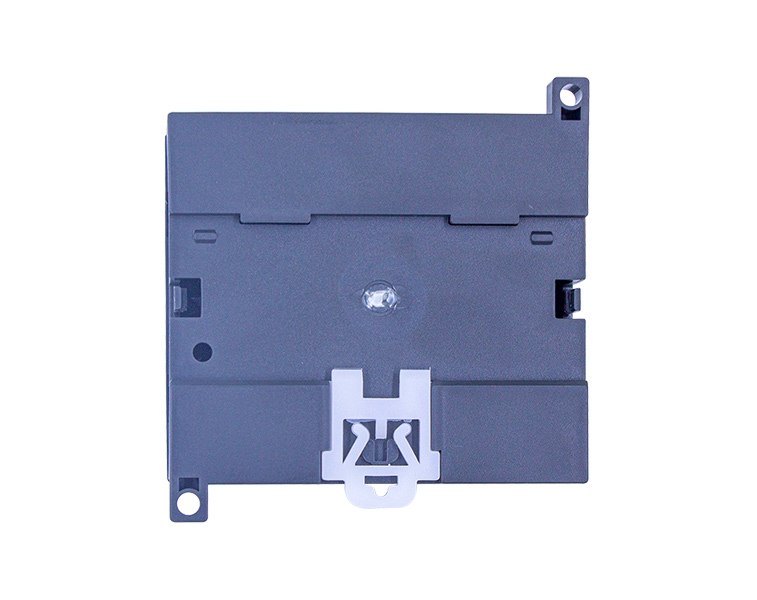

Installation method | Rail mounting | Rail mounting | Rail mounting |
Hole DIM | / | / | / |
Overall DIM | / | / | / |
Shell DIM | 90*80*61 | 90*80*61 | 90*80*61 |
Seat | Optional | Optional | Optional |
Shell | Optional | Optional | Optional |
