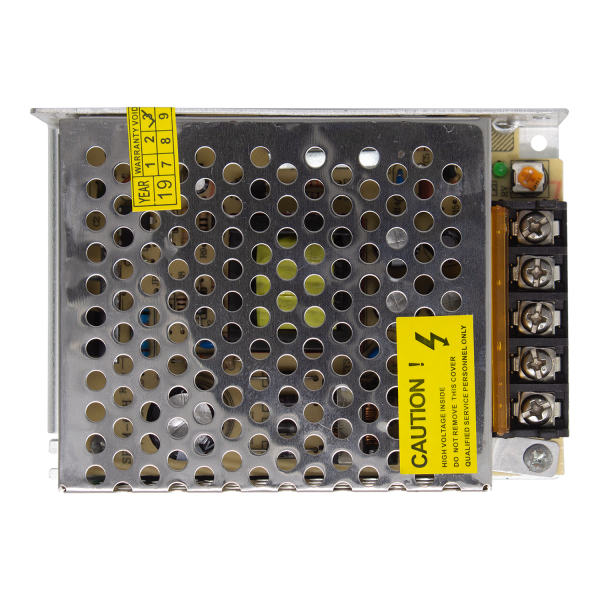

AC 220V to DC 24V DC power supply Mesh design, effective heat dissipation; Support undervoltage protection, overload protection, short circuit protection
| Type | WS-50-24 | WS-25-24 |
| power | 50W | 25W |
| Input voltage | 176V-264V AC 47-63HZ | 176V-264V AC 47-63HZ |
| Output voltage | Around 22-26V | Around 22-26V |
| Output current | 2A | 1A |
| Current range | 0~2A | 0~1A |
| Shelf life | 1 years | 1 years |
| Heat dissipation method | Natural heat dissipation, base plate heat conduction | Natural heat dissipation, base plate heat conduction |
| Fit | generally | generally |
| Efficiency | >80% | >80% |
| Operating temperature | -10℃～+60℃ | -10℃～+60℃ |
| Operating humidity | 20%-90RH | 20%-90RH |
| Output regulation range | ±10%（Rated output voltage） | ±10%（Rated output voltage） |
| Product weight | 0.1966KG | 0.1247KG |
| protection | Overload protection， Short circuit protection | Overload protection Short circuit protection |
| Product size | 110*78*36mm | 85*57*34mm |

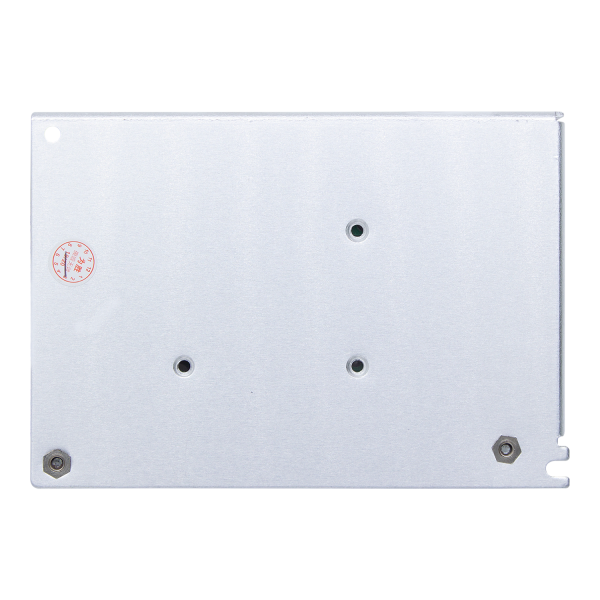

| Installation | Flat screw mounting | Flat screw mounting |
