AC100 ~ 240V wide voltage input Sufficient power, short circuit protection; Strong carrying capacity and anti-interference; Beautiful appearance, guide rail installation; Industrial power supply, small size, space saving;

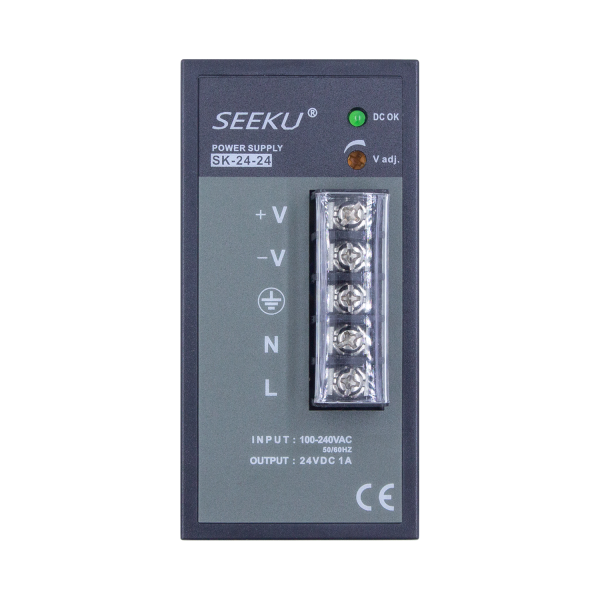

| Type | SK-24-24 | SK-50-24 | SK-100-24 |
| power | 24W | 50W | 100W |
| Input voltage | AC100~240V | AC100~240V | AC100~240V |
| Output voltage | 24V | 24V | 24V |
| Output current | 1A | 2.1A | 4.2A |
| Current range | 0~1A | 0~2.1A | 0~4A |
| Shelf life | 2 years | 2 years | 2 years |
| Heat dissipation method | Natural heat dissipation, advanced heat dissipation technology, Using high-temperature resistant components | Natural heat dissipation, advanced heat dissipation technology, Using high-temperature resistant components | Natural heat dissipation, advanced heat dissipation technology, Using high-temperature resistant components |
| Fit | Suitable for use in the industrial automation industry | Suitable for use in the industrial automation industry | Suitable for use in the industrial automation industry |
| Efficiency | 0.83 | 0.83 | 0.91 |
| Operating temperature | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
| Operating humidity | 10%-90RH | 10%-90RH | 10%-90RH |
| Output regulation range | ±10%（Rated output voltage） | ±10%（Rated output voltage） | ±10%（Rated output voltage） |
| Product weight | 0.1786KG | 0.1808KG | 0.1869KG |
| protection | Overload protection, short circuit protection, overtemperature protection | Overload protection, short circuit protection, overtemperature protection | Overload protection, short circuit protection, overtemperature protection |
| Product size | Plastic shell 90mm *75mm *45mm | Plastic shell 90mm *75mm *45mm | Plastic shell 90mm *75mm *45mm |

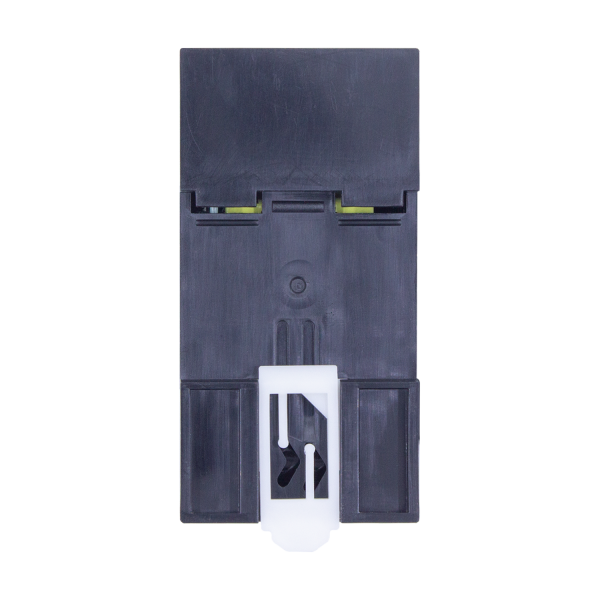

| Installation | DIN Din Rail | DIN Din Rail | DIN Din Rail |
