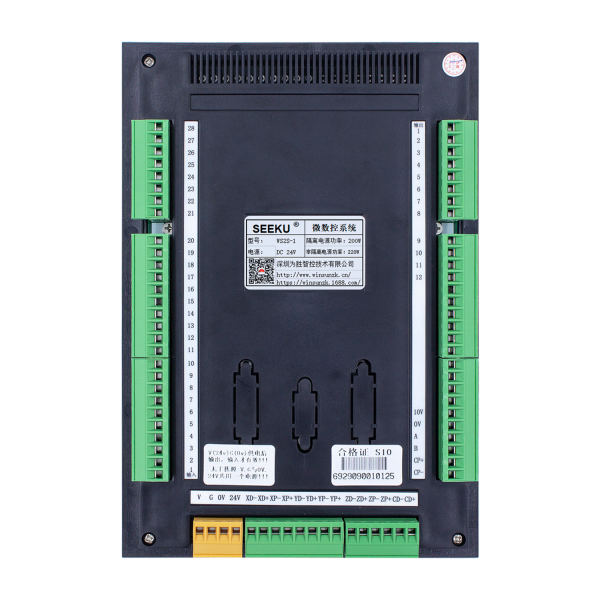

4.3 inch LCD color screen Chinese form filling guided programming The program can realize the automatic conversion of distance, angle and number of turns It can control the pulse frequency of 1-4 axes up to 400kHz 28 input / 12 output ports (enhanced version can output 22 channels) Support linkage and non linkage mixed programming 1-way panel handwheel U-disk import / export program custom on / standby interface
| Function Type | Product name | WS2B | WS2S | WS2P | WS3C | |
| Hardware performance | Display screen | 4.3” LCD Color screen | 4.3” LCD Color screen | 7” LCD screen | 7" LCD Color screen HMI | |
| Resolution | 480×272 Px | 480×272 Px | 800×480 Px | 800*480 | ||
| The image format of the boot | 24-bit bitmap BMP | 24-bit bitmap BMP | 24-bit bitmap BMP | / | ||
| Number of input | 18 | 28 | 24 | 28 | ||
| Number of outlets | 8 | 12 | 18 | 18 | ||
| Keystroke life | 50000 frequency | 50000 frequency | 60000 frequency | / | ||
| Electric specification | Power supply to the system | 12W | 15W | DC 24V， 1A | / | |
| Power consumption | DC 24V， | DC 24V， | / | DC 24V | ||
| Non-isolated load | 140W | 220W | / | / | ||
| Isolate the load | 120W | 200W | / | / | ||
| Products function technology parameter | The number of axes can be controlled | 1-4axis X、Y、Z、Caxis | 1-4axis X、Y、Z、Caxis | 1-6axis X、Y、Z、A ，Four-axis linkage, B and C axes non-linkage movement | 1-2axis X、Y | |
| Automatic | / | / | / | Auto-run, single-step operation | ||
| Manual | / | / | / | Manual high and low speed, jogging, return program zero, manual output, back Mechanical zero | ||
| IO | / | / | / | / | ||
| Imputation | supported | supported | supported | supported | ||
| Analog | N/A | N/A | / | N/A | ||
| Configuration functions | supported | supported | supported | supported | ||
| Powered-down memory | supported | / | / | / | ||
| U disk | Yes, configuration functions, programs, parameters and boot pictures can be imported | Yes, configuration functions, programs, parameters and boot pictures can be imported | Yes, configuration functions, programs, parameters and boot pictures can be imported | supported | ||
| External manual Pulse | N/A | Manual operation panel handwheel | Add-ins are supported | 1-way electronic handwheel | ||
| Back to zero | / | / | / | / | ||
| procedure | Chinese form-filled programming | Chinese form-filled programming | Chinese form-filled programming | Chinese guided programming | ||
| language | Chinese，English | Chinese，English | Chinese，English | Chinese | ||
| Storage program | 20 | 20 | 20 | 12 | ||
| The number of program lines | 999 | 999 | 512 | |||
| Minimum data unit | / | / | / | 0.001mm | ||
| Maximum data size | / | / | / | ±99999.999mm | ||
| Maximum pulse output frequency | Single axis 400KHZ | / | Single axis 400KHZ | Single axis 400KHz Two-axis linear interpolation350K，Two-axis arc interpolation 300K，Non-linkage 100K | ||
| Single axis fast movement speed | / | / | / | / | ||
| Four-axis fast movement speed | / | / | / | / | ||
| Arc motion movement speed | / | / | / | / | ||
| Speed multiplier | / | / | / | / | ||
| Other | Powered-down memory | supported | supported | supported | supported | |
| Time lock | supported | supported | supported | / | ||
| Soft limit option | supported | supported | / | |||
| Customize the modification interface | supported | supported | supported | / | ||
| Power On to Machine 0 point | supported | supported | supported | / | ||
| Power On to Machine 0 sequence option | supported | supported | / | / | ||
| Interface | / | / | / | / | ||
| Enter a single channel | / | / | DC 24V, 10mA | DC 24V, 15mA | ||
| Output single channel | / | / | DC 24V, 0.5A | DC 24V, 0.5A | ||
| External manual | / | / | / | Control motor forward and reverse, start, pause, alarm, emergency stop, etc | ||
| Speed limit for fast motion | / | / | / | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Maximum processing speed limit | / | / | / | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Electronic gears | / | / | / | molecule:1-99999,denominator：1-99999 | ||
| Operating temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | ||
| Ambient humidity | 0-85% | 0-85% | 0-85% | 0-85% | ||
| Overall DIM L*W（mm） | 206×131×34mm | 160×230×37.5mm | 298×203×36.3mm | 200×140×32mm | ||
| Insert port size | 194×119×25mm | 140×210×35mm | 270×175×33mm | 192×130×30mm | ||
| Scope of application | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | / | ||
| Limit protection | / | / | Supports hard and soft limits | / | ||
| Multi Axis to machine 0 sequence option | / | / | supported | supported | ||
| Standard MPG interface | / | / | 1-way | supported | ||
| Main Axis Speed adjustment analog output port | / | / | 1-way0-10V | supported | ||
