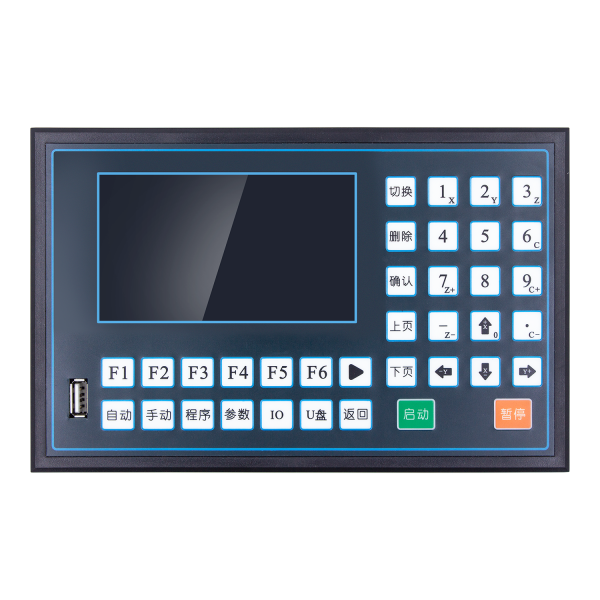

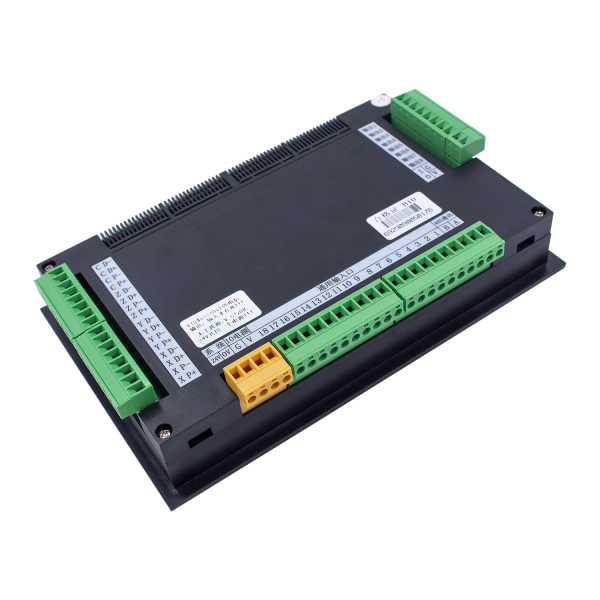

4.3 inch LCD color screen Chinese form filling guided programming The program can realize the automatic conversion of distance, angle and number of turns Pulse frequency up to 400kHz It can control 18 input / 8 output ports of 1-4 axes U-disk import / export program custom on / standby interface
| Function Type | Product name | WS2B | WS2S | WS2P | WS3C | |
| Hardware performance | Display screen | 4.3” LCD Color screen | 4.3” LCD Color screen | 7” LCD screen | 7" LCD Color screen HMI | |
| Resolution | 480×272 Px | 480×272 Px | 800×480 Px | 800*480 | ||
| The image format of the boot | 24-bit bitmap BMP | 24-bit bitmap BMP | 24-bit bitmap BMP | / | ||
| Number of input | 18 | 28 | 24 | 28 | ||
| Number of outlets | 8 | 12 | 18 | 18 | ||
| Keystroke life | 50000 frequency | 50000 frequency | 60000 frequency | / | ||
| Electric specification | Power supply to the system | 12W | 15W | DC 24V， 1A | / | |
| Power consumption | DC 24V， | DC 24V， | / | DC 24V | ||
| Non-isolated load | 140W | 220W | / | / | ||
| Isolate the load | 120W | 200W | / | / | ||
| Products function technology parameter | The number of axes can be controlled | 1-4axis X、Y、Z、Caxis | 1-4axis X、Y、Z、Caxis | 1-6axis X、Y、Z、A ，Four-axis linkage, B and C axes non-linkage movement | 1-2axis X、Y | |
| Automatic | / | / | / | Auto-run, single-step operation | ||
| Manual | / | / | / | Manual high and low speed, jogging, return program zero, manual output, back Mechanical zero | ||
| IO | / | / | / | / | ||
| Imputation | supported | supported | supported | supported | ||
| Analog | N/A | N/A | / | N/A | ||
| Configuration functions | supported | supported | supported | supported | ||
| Powered-down memory | supported | / | / | / | ||
| U disk | Yes, configuration functions, programs, parameters and boot pictures can be imported | Yes, configuration functions, programs, parameters and boot pictures can be imported | Yes, configuration functions, programs, parameters and boot pictures can be imported | supported | ||
| External manual Pulse | N/A | Manual operation panel handwheel | Add-ins are supported | 1-way electronic handwheel | ||
| Back to zero | / | / | / | / | ||
| procedure | Chinese form-filled programming | Chinese form-filled programming | Chinese form-filled programming | Chinese guided programming | ||
| language | Chinese，English | Chinese，English | Chinese，English | Chinese | ||
| Storage program | 20 | 20 | 20 | 12 | ||
| The number of program lines | 999 | 999 | 512 | |||
| Minimum data unit | / | / | / | 0.001mm | ||
| Maximum data size | / | / | / | ±99999.999mm | ||
| Maximum pulse output frequency | Single axis 400KHZ | / | Single axis 400KHZ | Single axis 400KHz Two-axis linear interpolation350K，Two-axis arc interpolation 300K，Non-linkage 100K | ||
| Single axis fast movement speed | / | / | / | / | ||
| Four-axis fast movement speed | / | / | / | / | ||
| Arc motion movement speed | / | / | / | / | ||
| Speed multiplier | / | / | / | / | ||
| Other | Powered-down memory | supported | supported | supported | supported | |
| Time lock | supported | supported | supported | / | ||
| Soft limit option | supported | supported | / | |||
| Customize the modification interface | supported | supported | supported | / | ||
| Power On to Machine 0 point | supported | supported | supported | / | ||
| Power On to Machine 0 sequence option | supported | supported | / | / | ||
| Interface | / | / | / | / | ||
| Enter a single channel | / | / | DC 24V, 10mA | DC 24V, 15mA | ||
| Output single channel | / | / | DC 24V, 0.5A | DC 24V, 0.5A | ||
| External manual | / | / | / | Control motor forward and reverse, start, pause, alarm, emergency stop, etc | ||
| Speed limit for fast motion | / | / | / | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Maximum processing speed limit | / | / | / | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Electronic gears | / | / | / | molecule:1-99999,denominator：1-99999 | ||
| Operating temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | ||
| Ambient humidity | 0-85% | 0-85% | 0-85% | 0-85% | ||
| Overall DIM L*W（mm） | 206×131×34mm | 160×230×37.5mm | 298×203×36.3mm | 200×140×32mm | ||
| Insert port size | 194×119×25mm | 140×210×35mm | 270×175×33mm | 192×130×30mm | ||
| Scope of application | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | Welding, drilling, dispensing, spraying, feeding, cutting, grinding, instrumentation Lathes and automation applications, scientific experiments and other fields... | / | ||
| Limit protection | / | / | Supports hard and soft limits | / | ||
| Multi Axis to machine 0 sequence option | / | / | supported | supported | ||
| Standard MPG interface | / | / | 1-way | supported | ||
| Main Axis Speed adjustment analog output port | / | / | 1-way0-10V | supported | ||
