3.5 inch color LCD screen Chinese form filling guided programming The program can realize the automatic conversion of distance, angle and number of turns It can control 16 input / 8 output ports of 1-4 axes Pulse frequency up to 150kHz Add "configuration" function to customize the on / off picture

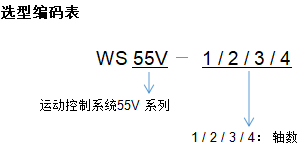

| Function Type | Product name | WS55 | WS55H | WS55V | WS55M | WS3C | |
| Hardware performance | Display screen | 105*40mm Blue screen | 3.5" LCD Color screen | 3.5" LCD Color screen | 62*35mm Color screen | 7" LCD Color screen HMI | |
| Resolution | 192*64 | 320*240 | 320*240 | 128*64 | 800*480 | ||
| Power ON picture format | Monochrome bitmap BMP | 24-bit bitmap BMP | 24-bit bitmap BMP | 24-bit bitmap BMP | / | ||
| Number of input | 18 | 16 | 16 | 7 | 28 | ||
| Number of outlets | 8 | 8 | 8 | 4 | 18 | ||
| Keystroke life | 50000 frequency | 50000 frequency | 50000 frequency | 50000 frequency | / | ||
| Electric specification | Power supply to the system | DC 24V | DC 24V | DC 24V | DC 24V | / | |
| Power consumption | 10W | 10W | 10W | 10W | DC 24V | ||
| Non-isolated load | 120W | 120W | 120W | 120W | / | ||
| Isolate the load | 100W | 100W | 100W | 100W | / | ||
| Products function technology parameter | The number of axes can be controlled | 1-4axis X、Y、Z、C axis(two axes and above) linkage | 1-4axis X、Y、Z、C axis(two axes and above) linkage | 1-4axis X、Y、Z、C axis(two axes and above) linkage | 1-2axis （X axis、Y axis) | 1-2axis X、Y | |
| Automatic | Auto run; dry run; single-step run | auto execution; single step execution; program terminated | actual run; dry run; single-step run; program terminated; machine to 0 | auto run;single-step run; | auto run;single-step run; | ||
| Manual | Motor positive inversion; Program back to 0;machine back to 0; output control | Motor positive inversion; Program back to 0; Manual output; manual pulse | Manual High-low speed; inching run;Program back to 0; machine back to 0; Manual output. | Manual High-low speed; inching run;Program back to 0; machine back to 0; Manual output. | Manual High-low speed; inching run;Program back to 0; machine back to 0; Manual output. | ||
| IO | N/A | Outer start; outer pause; alarm; emergency stop; positive and negative limit; output; system self-check | / | / | / | ||
| Imputation | supported | supported | supported | supported | supported | ||
| Analog | N/A | 1路 0~10V | N/A | N/A | N/A | ||
| Configuration functions | N/A | N/A | supported | N/A | supported | ||
| Powered-down memory | / | supported | supported | supported | / | ||
| U disk | N/A | supported | Not supported | Not supported | supported | ||
| External Manual Pulse | N/A | Manual operation panel handwheel | N/A | N/A | 1 CH electrial handwheel | ||
| Back to zero | / | X/Y/Z/C Axis machine back to 0 | / | / | / | ||
| procedure | Chinese guided programming | G-code programming | Chinese guided programming | Chinese guided programming | Chinese guided programming | ||
| language | Chinese | Chinese， English | Chinese | Chinese | Chinese | ||
| Storage program | 20 | 99 | 20 | 10 | 12 | ||
| The number of program lines | 480 | 999 | 480 | 480 | 512 | ||
| Minimum data unit | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | ||
| Maximum data size | ±99999.999mm | ±99999.999mm | ±99999.999mm | ±99999.999mm | ±99999.999mm | ||
| Maximum pulse output frequency | 150KHz | Single axis 400KHz | 150KHz | 150KHz | Single axis 400KHz; 2 axis offset 350K; 2 axis arc offset 300K; Non-coupling 100K | ||
| Single axis fast movement speed | / | 24m/min（When the pulse equivalent is 0.001mm） | 9000mm/min（When the pulse equivalent is 0.001mm） | / | / | ||
| Four-axis fast movement speed | / | 21m/min（When the pulse equivalent is 0.001mm） | 9000mm/min（When the pulse equivalent is 0.001mm） | / | / | ||
| Arc motion movement speed | / | 18m/min（When the pulse equivalent is 0.001mm） | / | / | / | ||
| Speed multiplier | / | 10%~200% adjustable | / | / | / | ||
| Other | Powered-down memory | / | / | / | supported | supported | |
| Time lock | / | / | / | / | / | ||
| Soft limit option | / | / | / | / | / | ||
| Customize the modification interface | / | / | / | / | / | ||
| Power On to Machine 0 point | / | / | / | / | / | ||
| Power On to Machine 0 sequence option | / | / | / | / | / | ||
| Interface | USB interface | N/A | / | USB interface | / | ||
| Enter a single channel | / | / | / | DC 24V, 15mA | DC 24V, 15mA | ||
| Output single channel | DC 24V, 0.5A | N/A | / | DC 24V, 0.5A | DC 24V, 0.5A | ||
| External manual | Control motor forward and reverse, start, pause, alarm, emergency stop, etc | / | / | Control motor forward and reverse, start, pause, alarm, emergency stop, etc | Control motor forward and reverse, start, pause, alarm, emergency stop, etc | ||
| Speed limit for fast motion | 9000mm/min（When the pulse equivalent is 0.001mm） | / | / | 9000mm/min（When the pulse equivalent is 0.001mm） | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Maximum processing speed limit | 9000mm/min（When the pulse equivalent is 0.001mm） | / | / | 9000mm/min（When the pulse equivalent is 0.001mm） | 24000mm/min（When the pulse equivalent is 0.001mm） | ||
| Electronic gears | molecule:1-99999,denominator：1-99999 | / | molecule:1-99999,denominator：1-99999 | molecule:1-99999,denominator：1-99999 | molecule:1-99999,denominator：1-99999 | ||
| Operating temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | ||
| Ambient humidity | 0-85% | 0-85% | 0-85% | 0-85% | 0-85% | ||
| Overall DIM L*W（mm） | 172×94×30mm | 172×94×30mm | 172×94×30mm | 172×94×30mm | 200×140×32mm | ||
| Insert port size | 162×84×25.5mm （The front plate is 5mm thick) | 162×84×25.5mm （The front plate is 5mm thick) | 162×84×25.5mm （The front plate is 5mm thick) | 162×84×25.5mm （The front plate is 5mm thick) | 192×130×30mm | ||
| Scope of application | Welding; drilling; dispensing; spraying; feeding; cutting...etc | Welding; drilling; dispensing; spraying; feeding; cutting; grinding; meter lathe...etc | / | / | / | ||
| Limit protection | / | / | / | / | / | ||
| Multi Axis to machine 0 sequence option | / | / | / | / | supported | ||
| Standard MPG interface | / | / | / | / | supported | ||
| Main Axis Speed adjustment analog output port | / | / | / | / | supported | ||
