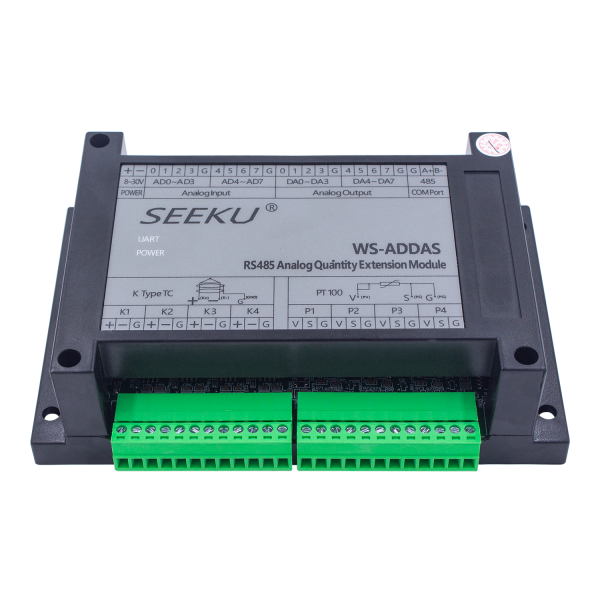

An integrated multifunctional module; 8-30v wide voltage power supply; Support 8 analog inputs; Support 8-channel analog output; Support 4-way K-type thermocouple temperature measurement; Support 4-way PT100 temperature measurement; RS485 interface, Modbus RTU protocol; Support direct communication with PLC of the company;
| Model NO. | Overall DIM L*W（mm） | voltage | Download speed | AD | DA | PT100 | K type thermo | communication port | MODBUS | Installation |
| WS-ADDAS | 140*90*40.5 | DC8-30V | 9600 | default 8 CH 0-10V， Can be changed0-20MA | 8 CH 0-10V | 4 CH（-50~450℃） | 4 CH（-60℃~840℃） | RS485 | supported | Din Rail |
