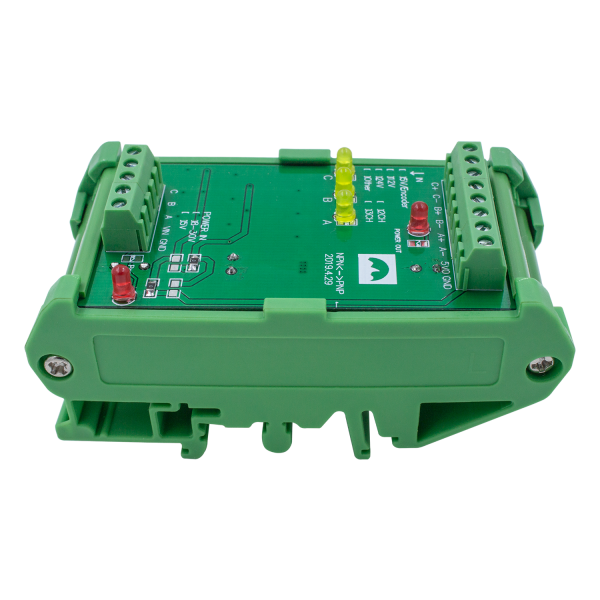

Used for the mutual conversion of NPN and PNP signals Wide voltage power supply dc4.5v-28v With optocoupler isolation and push-pull output mode
| Product name | Model NO. | Input voltage | Output voltage | Output current | Input signal | Input signal current | Output signal | Output maximum frequency | Operating temperature | Product size | Installation mode |
| NPN and PNP intertransfer module | WSP2N | 4.5V-28V | 5V (supply voltage greater than 5V) | ±50mA, with LED light indication | 3.3V,5V,12V,24V optional | <5mA | Push-pull output, low < 0.2V, high level > Supply voltage -0.6V | 2MHz | -45℃~ +85℃ | 91*46*42.5mm | Rail mounting |
