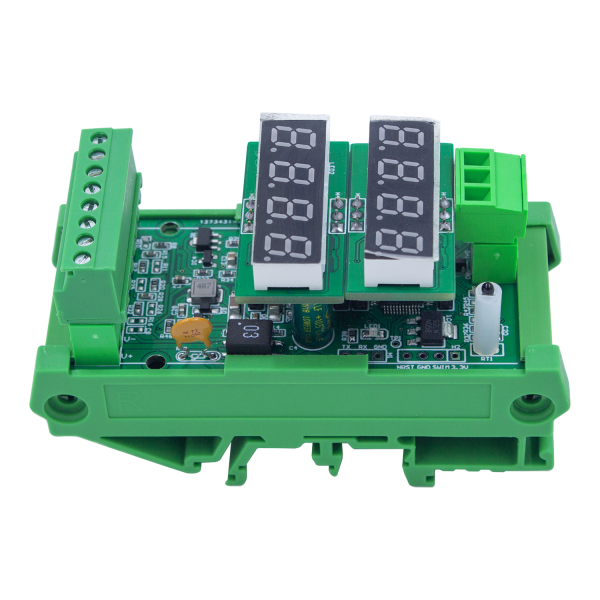

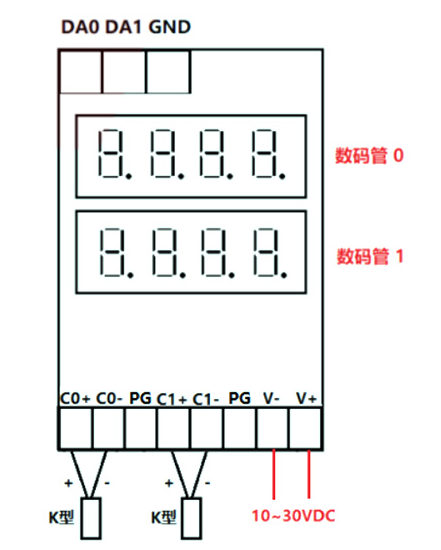

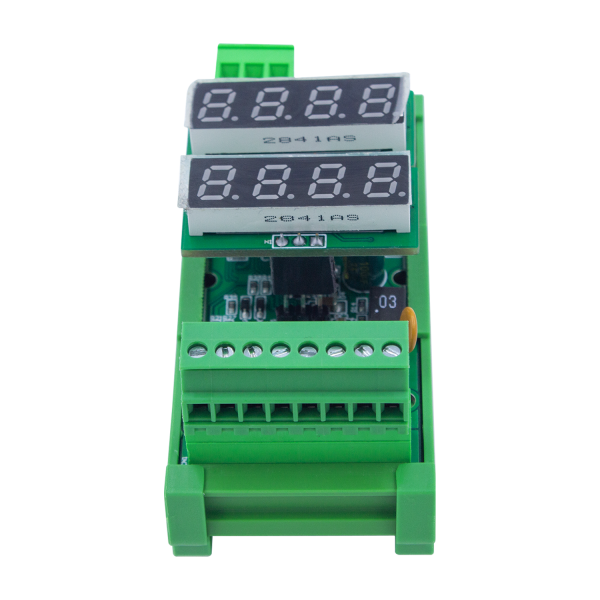

Support 2-way K-type thermocouple temperature measurement; Wide voltage power supply dc10v-30v; Support all devices with voltage ad function; Two temperature sensing inputs; Digital tube real-time display (optional) temperature

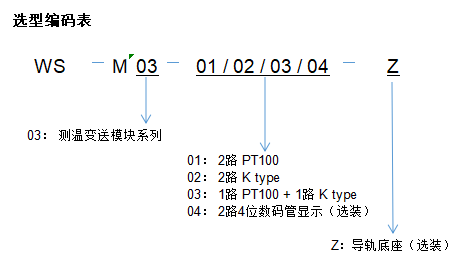

| Model NO. | WSM03-01 | WSM03-02 | WSM03-03 |
| In voltage | DC 13-30V | DC 13-30V | DC 13-30V |
| Out voltage | DC 0-10V | DC 0-10V | DC 0-10V |
| Rated operating current | <120MA | <120MA | <120MA |
| Temperature probe type | 2 CH PT100 | 2 CH K type | 1 CH PT100 1 CH K type |
| Measuring range | -50℃~450℃ | -60℃~840℃ (+Cold junction compensation error） | PT100: -50℃~450℃ K type：-60℃~840℃ (+Cold junction compensation error） |
| Measurement accuracy | ±1℃(±0.2%FS) | ±1.5℃(±0.2%FS)Not included Cold junction compensation error | PT100: ±1℃(±0.2%FS) K type：±1.5℃(±0.2%FS)Not included Cold junction compensation error |
| DA | 0-10V | 0-10V | 0-10V |
| DA Out accuracy | ±0.02V(±1℃) | ±0.016V(±1.5℃) | PT100: ±0.02V(±1℃) K type：±0.016V(±1.5℃) |
| Operating temperature | -45~℃~85℃ | -45~℃~85℃ | -45~℃~85℃ |
| Product size | 87*39*44.5 | 87*39*44.5 | 87*39*44.5 |

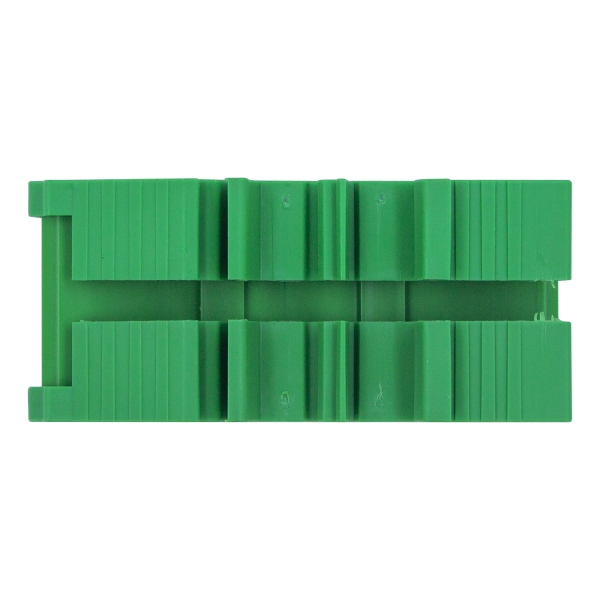

| Installation | Din Rail | Din Rail | Din Rail |
