High self adjustment speed; Class 0.2 temperature measurement accuracy; 1 ℃ display accuracy; 2 sampling times in 1 second; DC24V, AC220V power supply; Support multiple alarm modes; With a set of 32 segment programs that can be set; The maximum baud rate of 38400 communication is supported; 3 output types are optional, and 4 input types are compatible; With internal software, it is convenient to set parameters and record temperature curve

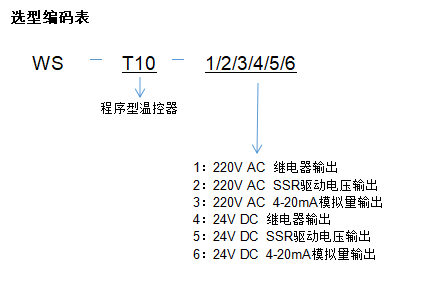

| Model NO. | T10-1 | T10-2 | T10-3 | T10-4 | T10-5 | T10-6 |
| Power supply voltage | AC220V | AC220V | AC220V | DC24V | DC24V | DC24V |
| In signal | Four input signals are compatible，Adjust the menu parameters to switch at will。 1.K type thermo measurement range:-60℃~840℃(+Cold junction compensates for temperature) 2.PT100 measurement range:-50~450℃ 3.0-10VAnalog input 4.4-20ma Analog input | |||||
| Out Signal | Relay | SSR Drive voltage output | 4-20MA output | Relay | SSR Drive voltage output | 4-20MA output |
| PID | supported | |||||
| Correspondence | RS485 | |||||
| Porter rate | 1.2K 2.4K 4.8K 9.6K 19.2K 38.4K | |||||
| Plarm manner | 1.Upper and lower limit alarm; 2.Positive and negative deviation alarms 3.Alarm in the interval 4.Out-of-range alarm 5.No alarms | |||||
| Precision | Type thermo:±0.2%FS Platinum resistance:±0.2%FS | |||||
| Temperature display | 1℃ | |||||
| Sampling velocity | 2 times/s | |||||
| Procedure mode | supported | |||||
| Procedure Number of segments | 32 paragraphs | |||||
| Overall DIM L*W（mm） | 48*48*112 | |||||
| Hole DIM L*W（mm） | 44*44*100 | |||||
