485数码显示屏WS-485RTU-4

8 kinds of brightness adjustable; Support ASCII code; Support floating point; Support the function code of reading and writing registers; It is composed of a variety of protective elements, with strong protective ability; Format display is supported, and format parameters can be permanently saved. Serial port receiving includes anti-interference logic, which can automatically identify baud rate;

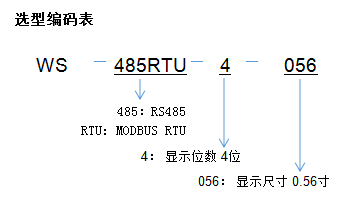

Product parametersWiring diagramType selection codeRelated downloads

ProjectContent
Displays the number of digits4 bits
Digital tube size0.56 inch
Stroke colorRed(Special color contact customer service)
Brightness8 types adjustable
Shell sizeWide 79mm x High 43mm x Deep 21.5mm
Panel Hole DIMWide 76mm x High 39.2mm
Supply voltage and currentDC voltage DC 7~36V; recommend 12V or 24V supply; current 30mA@24V
Float pointsupported
Communication portRS485
Protocolsupported ASCII display and Modbus RTU Dual protocol
automatic identification,No user setup is required
Serial parameterBaud rate:
1200bps/2400bps/4800bps/9600bps/19200bps/38400bps/57600bps/119200bps
 (缺省值 9600bps Parameters can be set)Start bit:1、Stop bit:1、digit bit:8、Check bit:N/A
Communication portNon-isolated,485 Total data cable and GND terminal connected together




NO DATA ~
