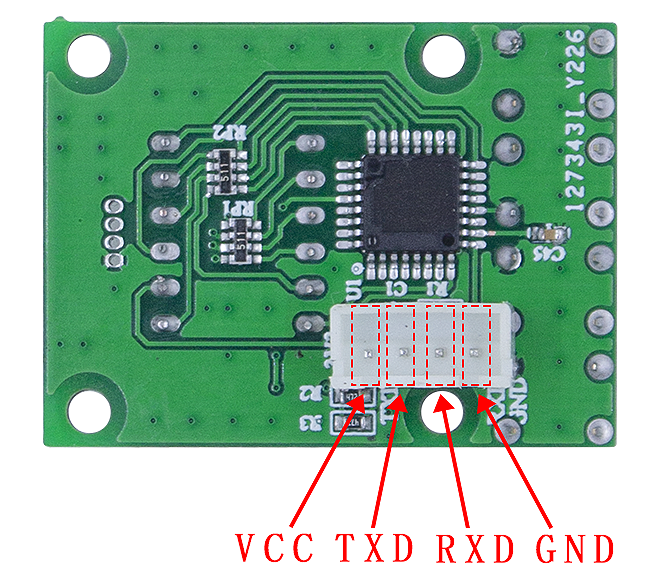

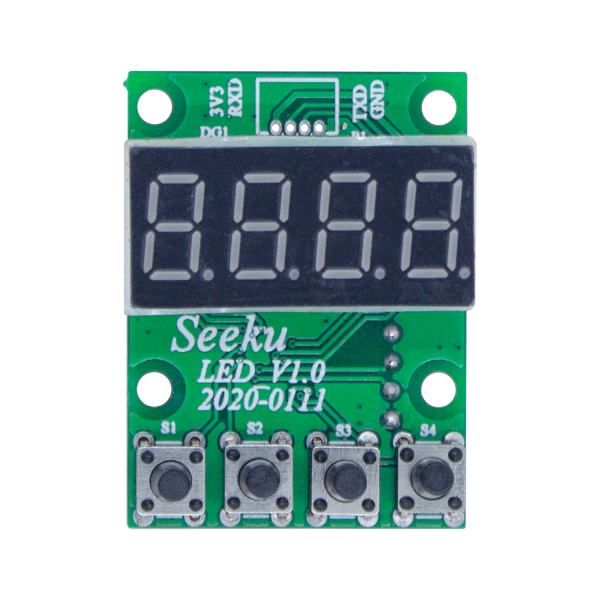

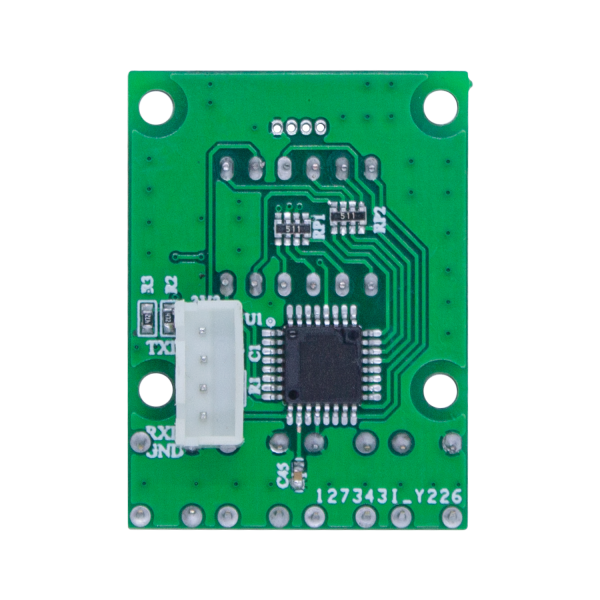

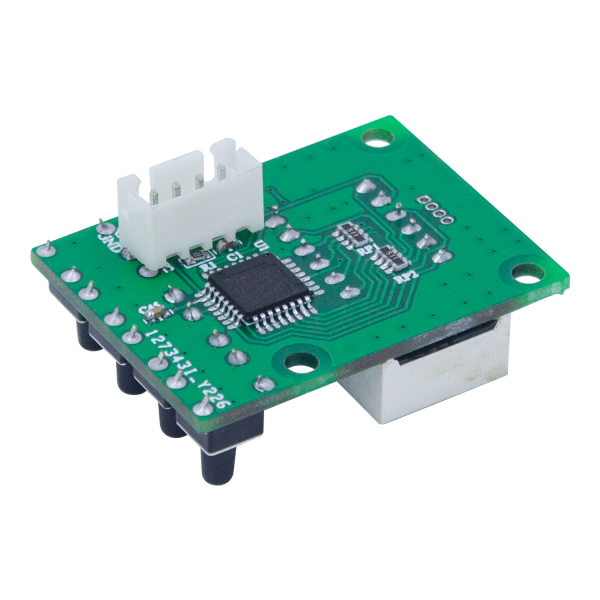

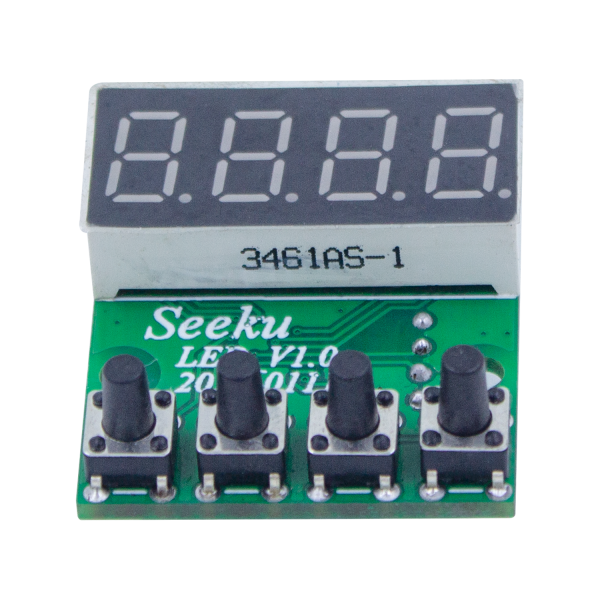

Small size, installation without bundle Four digit nixie tube display; Voltage compatible 3.3v-5v; The display or writing ground can be modified Function keys and common keys are reused; No separate power supply, direct PLC power supply; Simple operation, no programming, plug and play display;
| project | PLC internal intermediate registers | Memo | Hole DIM L*W（mm） | Overall DIM L*W（mm） | |
| Key switches | SET | M170 | When a key is pressed (e.g. SET), the corresponding PLC internal intermediate relay (e.g. M170) closes, and when the keystroke are released, the corresponding PLC internal relay is disconnected | 25*25 | 40.3*30 |
| UP | M171 | ||||
| DOWN | M172 | ||||
| ENT | M173 | ||||
| Top row of digital tubes | 0-999999 | D110 | When the value of the internal data register D110 is always displayed in main mode, the number of the data register to be changed is displayed when setting the parameter mode (range 0~1023 can be changed) | ||
