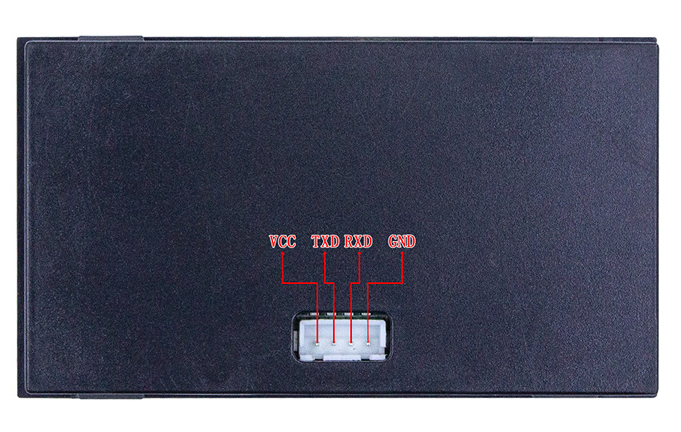

No programming, plug and play display; Two groups of 6-digit large-size display; Display or write address can be modified; Function keys and common keys are reused; 8 LED status indicators to meet your alarm, production completion and other indicators; The voltage is compatible with 3.3v-5v, without separate power supply, and can share the power supply with the industrial control board; Small size, simple operation, direct communication with the company's PLC.
| Project | PLC Internal intermediate registers | Remark | Overall DIM L*W（mm） | Hole DIM L*W（mm） | |
| Key switches | SET | M170 |  When a key is pressed (e.g. SET), the corresponding PLC internal intermediate relay(e.g. M170) is closed, and when the key is released, it is in the corresponding PLC The relay is disconnected | 94*53*19.5mm | 91.7*51.2mm |
| UP | M171 | ||||
| DOWN | M172 | ||||
| ENT | M173 | ||||
| LEDLight | 0 | M160 | When the internal intermediate relay is closed, e.g. M160, the corresponding indicator light will light up (e.g. 0), when the internal intermediate relay is disconnected, the corresponding finger The lights will go out | ||
| 1 | M161 | ||||
| 2 | M162 | ||||
| 3 | M163 | ||||
| 4 | M164 | ||||
| 5 | M165 | ||||
| 6 | M166 | ||||
| 7 | M167 | ||||
| Top row of digital tubes | 0-999999 | D110 | The value of the internal data register D110 is always displayed when in main mode, The number of the data register to be changed when setting the parameter mode (range 0~1023) | ||
| Lower row of digital tubes | 0-999999 | D114 | When in main mode, the value of the internal data register D114 is always displayed, The number of the data register to be changed when setting the parameter mode (range 0~1023) | ||
