PLC and HMI integration, saving space and wiring PLC adopts 32-bit high-performance CPU with fast running speed 7-inch HMI true color display, sensitive and accurate touch control, Support multi-channel high-speed counting Support interrupt, with power-off saving, optional real-time clock, timing lock, support floating point Memory capacity 8000 steps; Pluggable terminal, convenient for wiring Support analog input and output function; Support 485 Modbus communication, and NTC temperature measurement without transmitter PLC supports Mitsubishi GX developer or GX works 2 software ladder diagram programming, and the screen supports hmi-setup-v5.1 software programming.

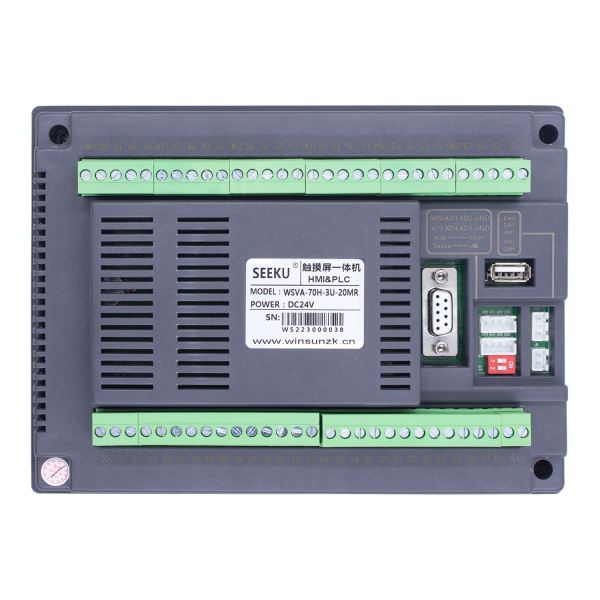

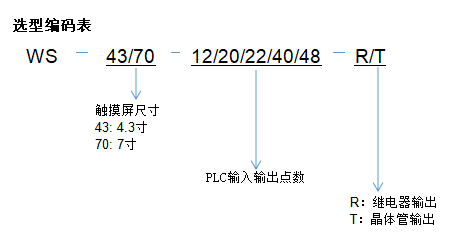

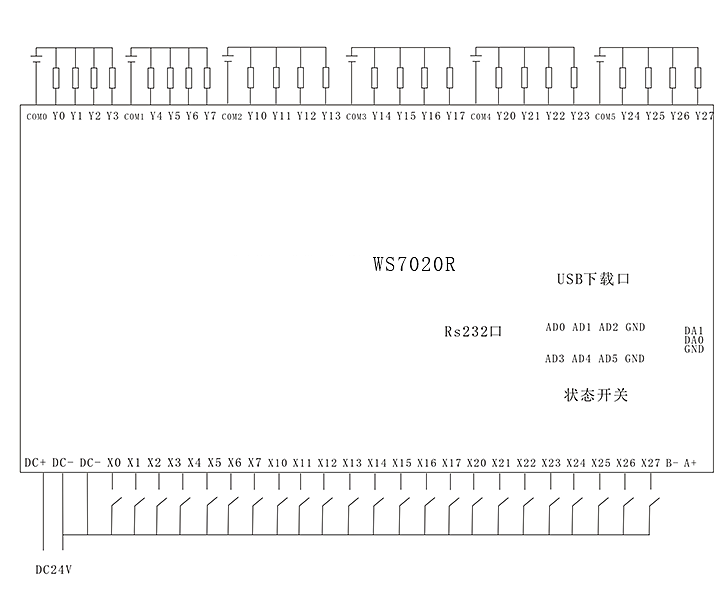

| Model | WS7020R | WS7020T | WS7040R | WS7040T | WS7048R | WS7048T | |
| Machine part | Product size(MM) | 199*144*59 | 199*144*59 | 199*144*59 | 199*144*59 | 199*144*59 | 199*144*59 |
| Install size(MM) | 190*136 | 190*136 | 190*136 | 190*136 | 190*136 | 190*136 | |
| HMI part | Screen | 7" TFT LCD | 7" TFT LCD | 7" TFT LCD | 7" TFT LCD | 7" TFT LCD | 7" TFT LCD |
| Resolution (Px) | 800X480 | 800X480 | 800X480 | 800X480 | 800X480 | 800X480 | |
| Color | 26ten thousand | 26ten thousand | 26ten thousand | 26ten thousand | 26ten thousand | 26ten thousand | |
| Brightness | 450 cd/m2 | 450 cd/m2 | 450 cd/m2 | 450 cd/m2 | 450 cd/m2 | 450 cd/m2 | |
| Backlight | LED | LED | LED | LED | LED | LED | |
| LED life span | 20000hour | 20000hour | 20000hour | 20000hour | 20000hour | 20000hour | |
| HMI | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen | |
| CPU | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | 32-bit 600MHz frequency ARM9 built-in 32MB DDR memory | |
| Memorizer | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | |
| RTC | Yes | Yes | Yes | Yes | Yes | Yes | |
| Power loss data save | supported | supported | supported | supported | supported | supported | |
| Programming software | HMI_Setup_V5.1 | HMI_Setup_V5.1 | HMI_Setup_V5.1 | HMI_Setup_V5.1 | HMI_Setup_V5.1 | HMI-Setup-V5.1 | |
| PLC part | Type | RLY | TR | RLY | TR | RLY | TR |
| Supply voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | |
| Input | 12 | 12 | 24 | 24 | 24 | 24 | |
| Output | 8 | 8 | 16 | 16 | 24 | 24 | |
| Current | 5A | 1A | 5A | 1A | 5A | 1A | |
| Load | 24V 220V | 24V | 24V 220V | 24V | 24V 220V | 24V | |
| Analog in | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | 3AD 0-10V, 3AD 4-20MA， can be changed NTC 10K | |
| Analog out | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | |
| Count | 6/3K,Can be changed 6/60K | 6/3K,Can be changed 6/60K | 6/3K,Can be changed 6/60K | 6/3K,Can be changed 6/60K | 6/3K,Can be changed 6/60K | 6/3K,Can be changed 6/60K | |
| Pulse out | N/A | 4/100K，Can be changed 8/100K | N/A | 4/100K，Can be changed 8/100K | N/A | 4/100K，Can be changed 8/100K | |
| Communication port | 1个RS232,1个RS485(Terminal blocks） | 1个RS232,1个RS485(Terminal blocks） | 1个RS232,1个RS485(Terminal blocks） | 1个RS232,1个RS485(Terminal blocks） | 1个RS232,1个RS485(Terminal blocks） | 1个RS232,1个RS485(Terminal blocks） | |
| M0DBUS | supported | supported | supported | supported | supported | supported | |
| RTC | supported | supported | supported | supported | supported | supported | |
| Floating point | N/A | N/A | N/A | N/A | N/A | N/A | |
| Capacity | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | |
| Download | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | |
| Download port | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | |
| Programming software | GX Developer/GX Works2 | GX Developer/GX Works2 | GX Developer/GX Works2 | GX Developer/GX Works2 | GX Developer/GX Works2 | GX Developer/GX Works2 | |
| Step motor | Not supported | supported | Not supported | supported | Not supported | supported | |
| Servo | Not supported | supported | Not supported | supported | Not supported | supported | |
| Installation method | Complete machine installation | Complete machine installation | Complete machine installation | Complete machine installation | Complete machine installation | Complete machine installation |
