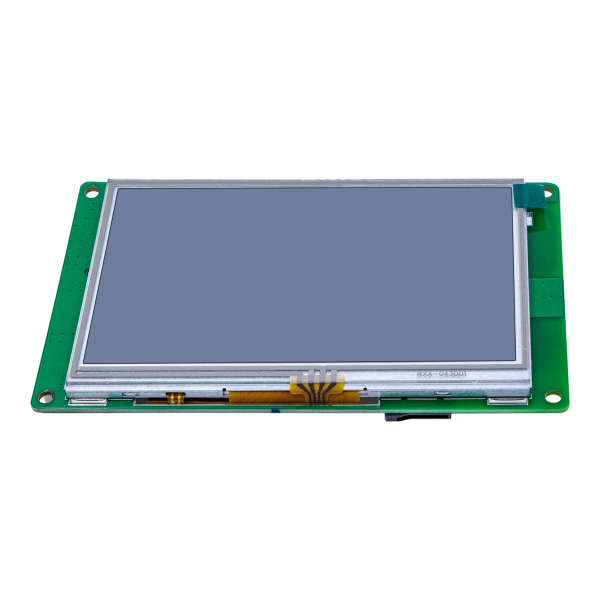

260000 true color display, 4-wire industrial resistance touch screen Lightning surge protection Built in real-time alarm clock, supporting the baud rate range of 1200-230400 It supports custom addition of image library, USB flash disk upgrade, data import and export 2-channel serial port, supporting rs485/ttl and RS232 communication Support for hmi-setup-v5.1 software programming Support multi language settings, multi-function buttons, recipes, data transmission, data collection, curves and other advanced functions
| Hardware performance | Model | WS-L043 | WS-L070 | WS-L101 |
| Screen | 4.3”TFT LCD | 7”TFT LCD | 10.1”TFT LCD | |
| Resolution | 480×272 Px | 800X480 | 1024x600 | |
| Color | 260K | 260K | 260K | |
| Brightness | 300 cd/m2 | 450 cd/m2 | 250 cd/m2 | |
| Backlight | LED | LED | LED | |
| LED Life | 20000hrs | 20000hrs | 20000hrs | |
| Touch screen | 4 line Touch panel of resistance | 4 line Touch panel of resistance | 4 line Touch panel of resistance | |
| Capacitive Panel optional | Capacitive Panel optional | |||
| CPU | 32-bit240MHz ARM9 | 32-bit 600MHz ARM9, built-in 32MB DDR | 32-bit 600MHz ARM9, built-in 32MB DDR | |
| Capacity | 128M NAND FLASH | 128Mbyte SPI NAND FLASH | 128Mbyte SPI NAND FLASH | |
| RTC | Yes | Yes | Yes | |
| Ethernet | / | / | / | |
| Power loss data save | Yes | Yes | Yes | |
| USB | USB2.0 port*1 | USB2.0 port*1 | USB2.0 port*1 | |
| USB2.0 Host port*1 | USB2.0 Host port*1 | USB2.0 Host port*1 | ||
| Download | USB cable&SD card | USB cable, SD card&U-Disk | USB cable, SD card&U-Disk | |
| U Disk | Yes | Yes | Yes | |
| Serial port communication | COM1:RS485 | COM1:RS232/RS485 | COM1:RS232/RS485 | |
| COM2:RS232 | （optional，default RS232） | （optional，default RS232） | ||
| COM2:RS232/RS485(optional) | COM2:RS232/RS485(optional,default RS485) | |||
| Electrical specifications | Rated power | < 2W | < 3.5W | < 3.5W |
| Rated Volt | DC 10V-30V | DC 10.8V-30V | DC 10V-30V | |
| Power protection | +/-2KV lightning surge protection; +/-4KV Group pulse; +/-4KV Static touch; +/-10KV Static Air | +/-2KV lightning surge protection; +/-4KV Group pulse; +/-4KV Static touch; +/-10KV Static Air | +/-2KV lightning surge protection; +/-4KV Group pulse; +/-4KV Static touch; +/-10KV Static Air | |
| Drop-outs | < 5 mS | < 5 mS | < 5 mS | |
| CE&RoHS | EN61000-6-2:2005 | EN61000-6-2:2005 | EN61000-6-2:2005 | |
| & | & | & | ||
| EN61000-6-4:2007 | EN61000-6-4:2007 | EN61000-6-4:2007 | ||
| Environmental specifications | Working temperature | -20～60℃ | -20～50℃ | -20～60℃ |
| Storage temperature | -30～70℃ | -40～70℃ | -30～70℃ | |
| Environment temperature | 10～90％RH | 10～90％RH | 10～90％RH | |
| Seismic performance | 10～25 Hz (X/Y/Z 2G/30mins) | 10～25 Hz (X/Y/Z 2G/30mins) | 10～25 Hz (X/Y/Z 2G/30mins) | |
| Cooling | Natural Air | Natural Air | Natural Air | |
| Other parameters | Product Size | 121.9mmX73.2mmx11mm | 189mmX105mm | 257.7mmX148.3mm |
| Screw Size | 114.8mmX66.4mm | 180mmX80mm | 247.5mmX120.4mm | |
| Screen Hole Size | 105.4mmX67.2mm | 166.5mmX102mm | 235mmX143mm | |
| Display Size | 95.04mmX53.86mm | 154.08mmX85.92mm | 222.7mmX125.3mm | |
| Net Weight | 96g | 280g | 380g | |
| Software | HMI_Setup_V5.1 | HMI_Setup_V5.1 | HMI_Setup_V5.1 | |
| SW Model | WS043AP | WS070AP | WS101AP |
