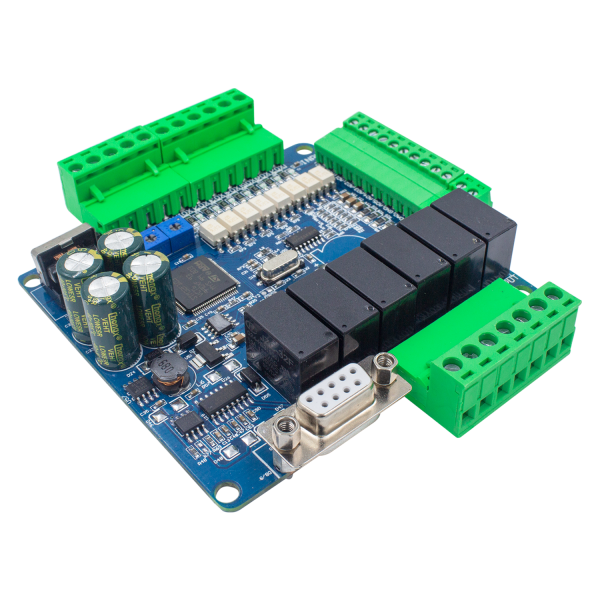

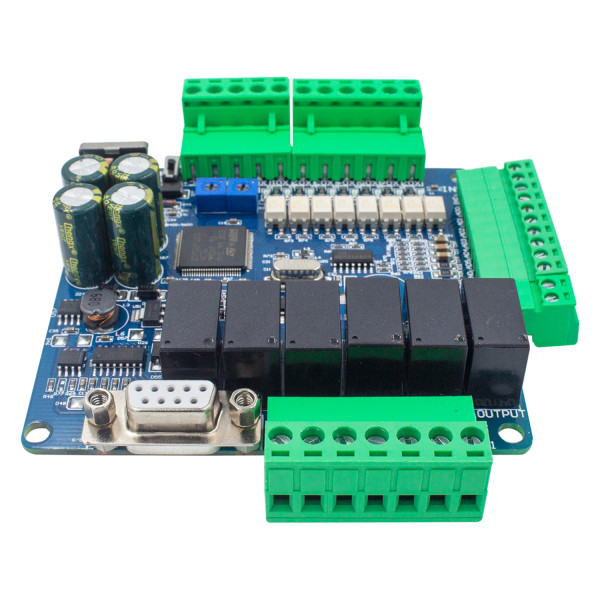

DC24V power supply Memory capacity 8000 steps 32-bit high-performance CPU with fast running speed NTC temperature measurement without transmitter Support Modbus communication, and can expand multi-channel IO Support interruption with power-off saving Optional real-time clock and timing lock 6 analog inputs, 3 voltages and 3 currents; 2-channel analog output Support high-speed counting 6-channel 3k, or select 2-channel 60K Support Mitsubishi GX developer or GX works 2 software ladder programming, simple and easy to understand
Model NO. | WS3U-14MR-F | WS3U-14MT-F | WS3U-24MR-F | WS3U-24MT-F | WS3U-32MR-F | WS3U-32MT-F | WS3U-48MR-F | WS3U-48MT-F | WS3U-56MR-F |
Output type | Relay | Transistor | Relay | Transistor | Relay | Transistor | Relay | Transistor | Relay |
Inputs | 8 | 8 | 14 | 14 | 16 | 16 | 24 | 24 | 32 |
Outputs | 6 | 6 | 10 | 10 | 16 | 16 | 24 | 24 | 24 |
Supply voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
Output current | 5A | 1A | 5A | 1A | 5A | 1A | 5A | 1A | 5A |
Load | 24V 220V | 24V | 24V 220V | 24V | 24V 220V | 24V | 24V 220V | 24V | 24V 220V |
Analog in | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V | 3AD 0-10V |
Analog out | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V |
Counting | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional | 6/3K default 2/60K Optional |
Pulse out | N/A | 2/100K | N/A | 4/100K | N/A | 8/100K default 4/100K Optional | N/A | 8/100K default 4/100K Optional | N/A |
RS485 communication | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
M0DBUS | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
Time | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
Float point | supported | supported | supported | supported | supported | supported | supported | supported | supported |
Capacity | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps | 8000steps |
Download Speed | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb | 38.4Kb |
Download port | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 |
Programming software | GX Developer /GX Works2 | GX Developer /GX Works2 | GX Developer /GX Works2 | GX Developer/GX Works2 | GX Developer /GX Works2 | GX Developer /GX Works2 | GX Developer /GX Works2 | GX Developer /GX Works2 | GX Developer /GX Works2 |
Stepping motor | Not supported | supported | Not supported | supported | Not supported | supported | Not supported | supported | Not supported |
Servo motor | Not supported | supported | Not supported | supported | Not supported | supported | Not supported | supported | Not supported |
Communicate with OP320 | supported | supported | supported | supported | supported | supported | supported | supported | supported |
Communicate with HMI | supported | supported | supported | supported | supported | supported | supported | supported | supported |
Installation method | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail | stud/Din Rail |
Terminal width | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Hole DIM L*W（mm） | 85*80 | 85*80 | 115*81.5 | 115*81.5 | 150*90 | 150*90 | 163*87 | 163*87 | 163*87 |
Overall DIM L*W（mm） | 93*87.5 | 93*87.5 | 121*87.5 | 121*87.5 | 150*90 | 150*90 | 174*95 | 174*95 | 174*95 |
Shell DIM L*W（mm） | 95*90*40 | 95*90*40 | 125*90*40 | 125*90*40 | 150*90*40 | 150*90*40 | 180*98*40 | 180*98*40 | 180*98*40 |
Seat | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
Shell | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
