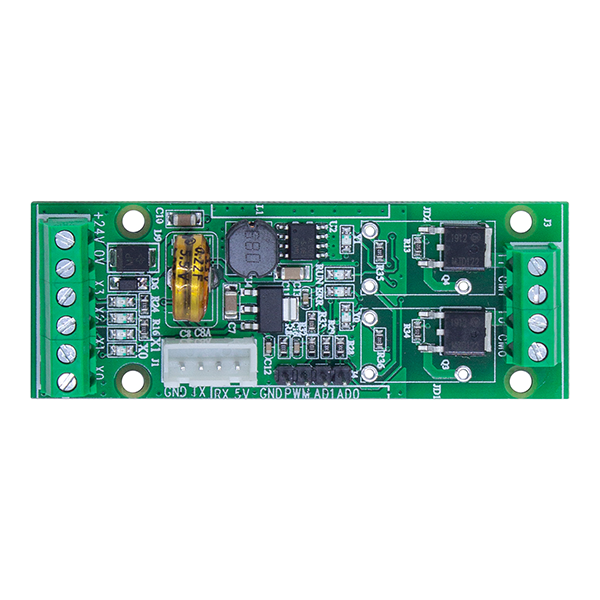

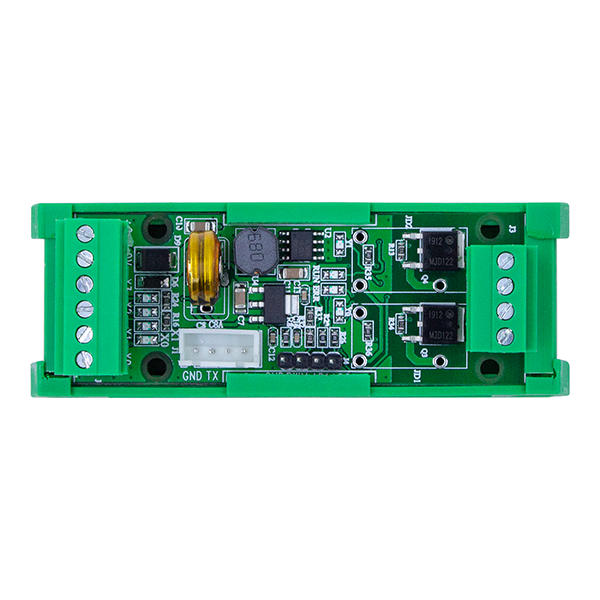

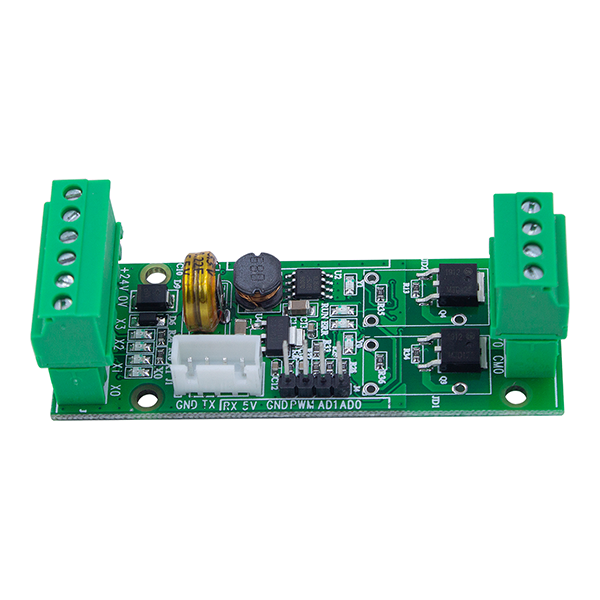

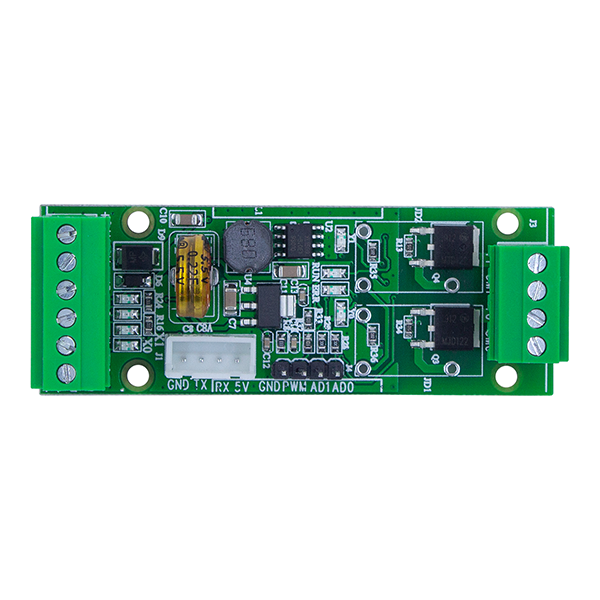

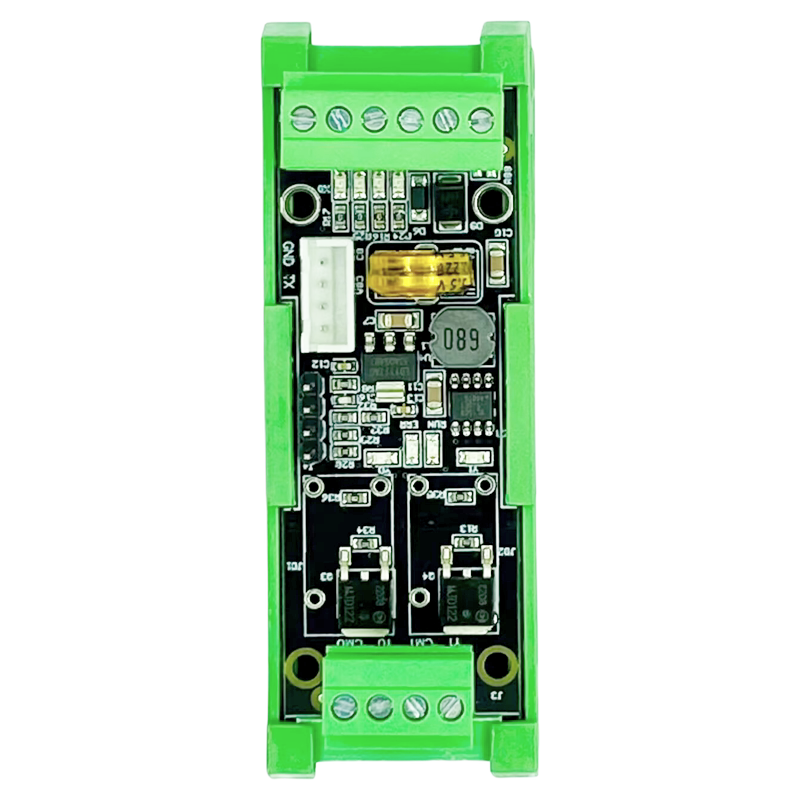

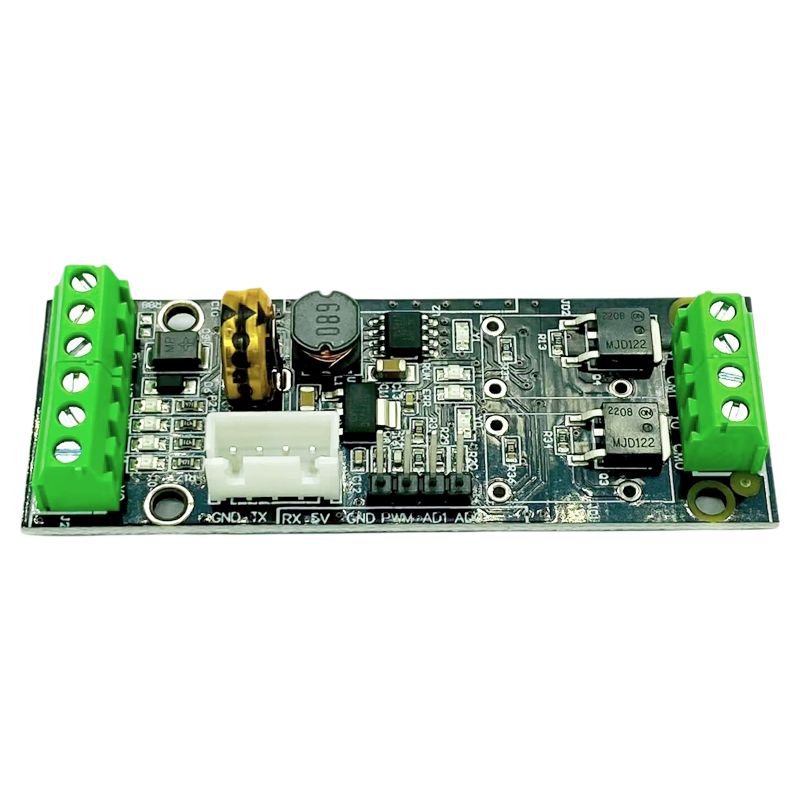

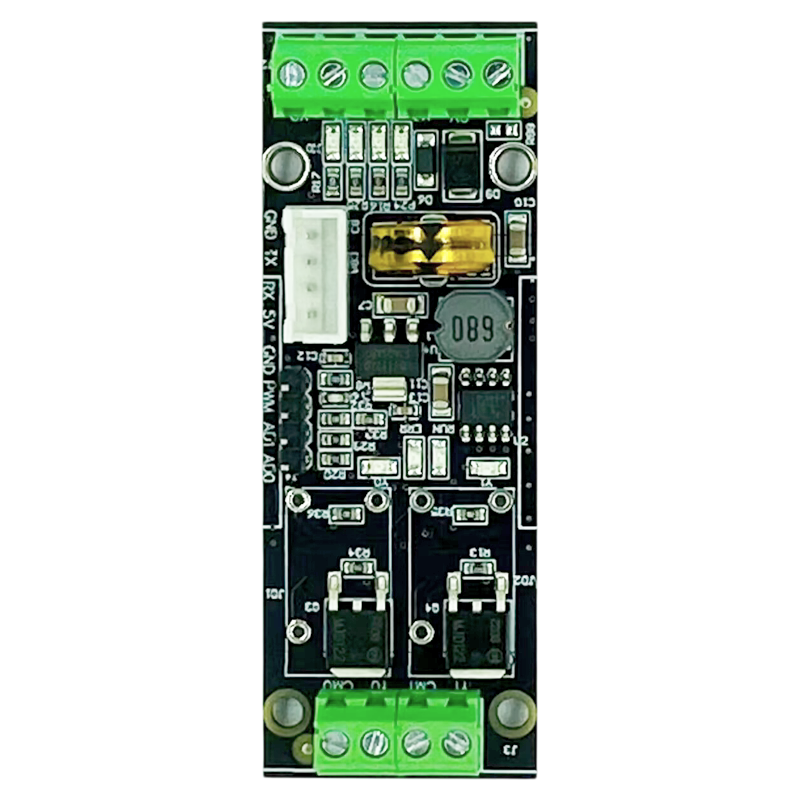

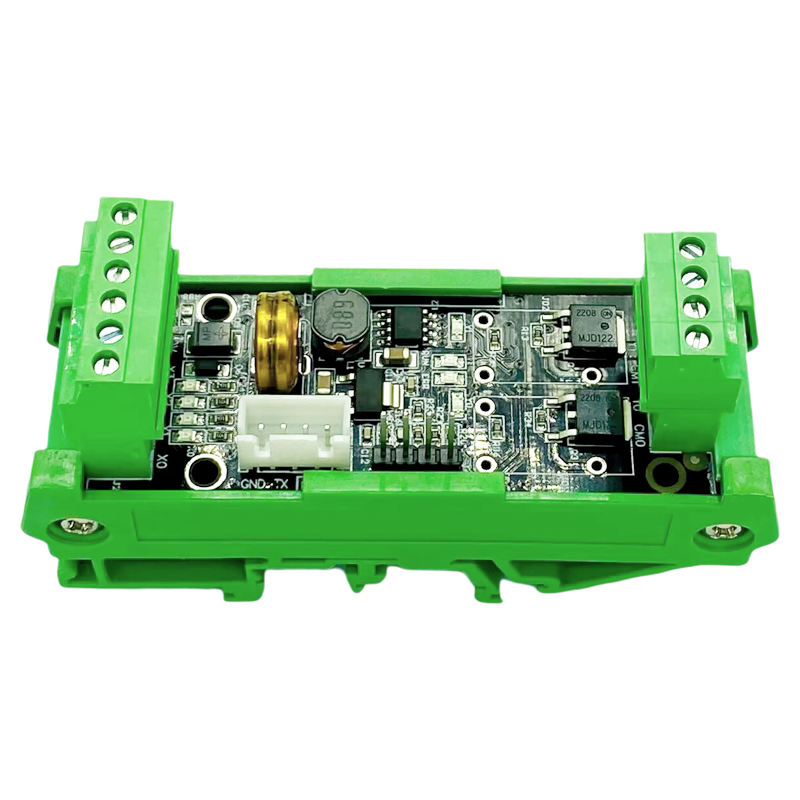

WS2N-6MT-S

Dc12-24v power supply Memory capacity 4000 steps 32-bit high-performance CPU with fast running speed Support 2 channels of 3K counting and 2 channels of 3K pulse output Optional 2-way 0-10V analog input Economical PLC with high cost performance Support interruption with power-off saving Optional fixed terminal, pluggable terminal Ultra small size, rail mounted, suitable for compact space Support Mitsubishi GX developer or GX works 2 software ladder programming, simple and easy to understand

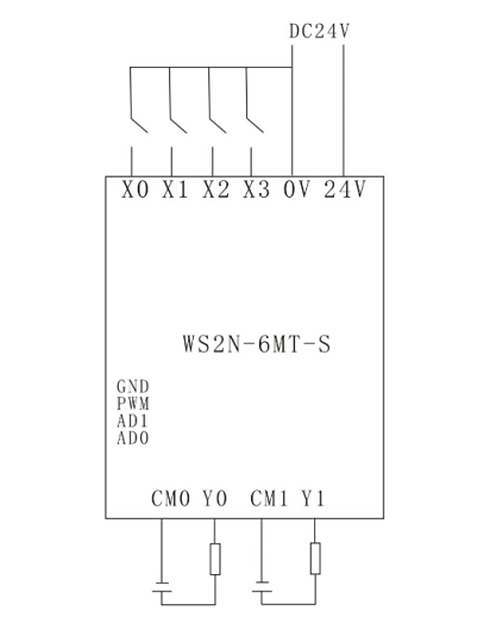

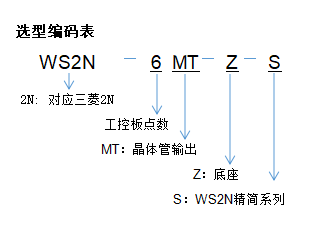

Product parametersWiring diagramType selection codeRelated downloads

Model NO.

WS2N-6MR-S

WS2N-6MT-S

WS2N-6MR-S-0C(D)

WS2N-10MR-S1

WS2N-10MR-S

WS2N-10MT-S

WS2N-14MR-S

WS2N-14MT-S

WS2N-20MR-S

WS2N-20MT-S

Output type

Relay

Transistor

Relay

Relay

Relay

Transistor

Relay

Transistor

Relay

Transistor

Inputs

4

4

4

6

6

6

8

8

12

12

Outputs

2

2

2

4

4

4

6

6

8

8

Supply voltage

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

DC12-24V

Output current

5A

1A

5A

5A

5A

1A

5A

1A

5A

1A

Load

24V 220V

24V

24V 220V

24V 220V

24V 220V

24V

24V 220V

24V

24V 220V

24V

Analog in

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

2AD
0-10V

Analog out

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Counting

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

Pulse out

N/A

2/3K

N/A

N/A

N/A

2/3K

N/A

2/3K

N/A

2/3K

RS485
communication

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

M0DBUS

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Time

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Float point

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Capacity

4000steps

4000steps

4000steps

4000steps

4000steps

4000steps

4000steps

4000steps

4000steps

4000steps

Download Speed

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

Download port

TTL

TTL

TTL

TTL

TTL

TTL

TTL

TTL

RS232/TTL

RS232/TTL

Programming software

GX Developer /GX Works2

GX Developer /GX Works2

GX Developer

      /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

GX Developer

    /GX Works2

Stepping motor

Not supported

supported

Not supported

Not supported

Not supported

supported

Not supported

supported

Not supported

supported

Servo motor

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Communicate with OP320

supported

supported

supported

supported

supported

supported

supported

supported

supported

supported

Communicate with HMI

supported

supported

supported

supported

supported

supported

supported

supported

supported

supported

Installation method

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Terminal width

/

/

/

/

/

/

/

/

/

/

Hole DIM

    L*W（mm）

21.8*52.5

21.8*52.5

26.5*28.5

54.5*63.5

29.4*24.6

29.4*24.6

44.4*24.6

44.4*24.6

59.6*24.6

59.6*24.6

Overall DIM

    L*W（mm）

73*27

73*27

80*35.5

89*73

73*34.6

73*34.6

73*49.6

73*49.6

73*64.8

73*64.8

Shell DIM

     L*W（mm）

86*31.4*48.4

86*31.4*48.4

/

102*75*46

86*37.6*48.4

86*37.6*48.4

86*52.7*48.4

86*52.7*48.4

73*67.9*48.4

73*67.9*48.4

Seat

Optional

Optional

N/A

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Shell

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A




SK222XP-14R User Manual V1.0

Upload Time： 2023-09-09

Download

M-PLC WS2N-S Serial User Manual V1.7

Upload Time： 2025-03-04

Download
PREVIOUS： NEXT：
