HOME>PLC>WS1N-S Series PLC>WS1N-14MR-S
为胜为胜为胜为胜为胜
为胜为胜为胜为胜为胜

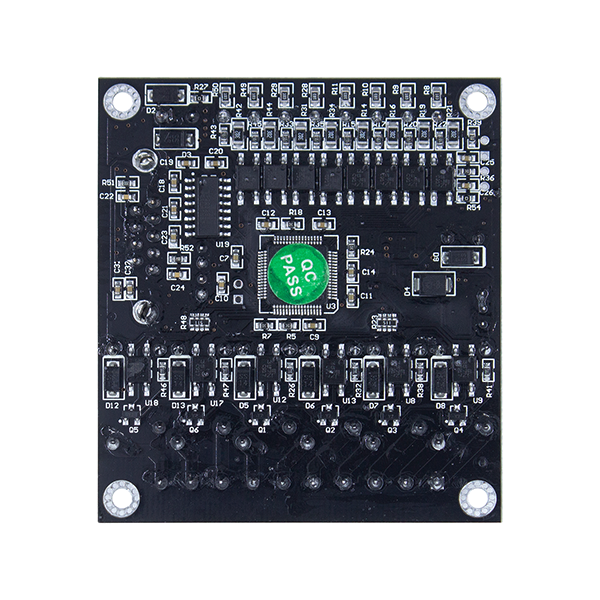

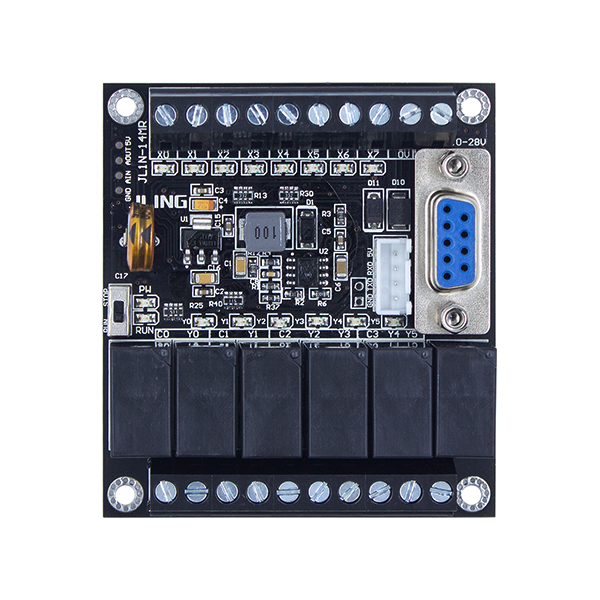

WS1N-14MR-S

DC10-28v power supply Memory capacity 8000 steps 32-bit high-performance CPU with fast running speed Support 2-channel 3K counting Optional guide rail base Support interruption with power-off saving Small size, suitable for compact space Support Mitsubishi GX developer or GX works 2 software ladder programming, simple and easy to understand

Product parametersWiring diagramType selection codeRelated downloads

Model NO.

WS1N-6MR-S

WS1N-10MR-S

WS1N-10MT-S

WS1N-14MR-S

WS1N-14MT-S

WS1N-20MR-S

WS1N-20MT-S

WS1N-24MT-S

WS1N-32MR-S

Output type

Relay

Relay

Transistor

Relay

Transistor

Relay

Transistor

Transistor

Relay

Inputs

4

6

6

8

8

12

12

12

16

Outputs

2

4

4

6

6

8

8

12

16

Supply voltage

DC10-28V

DC10-28V

DC10-28V

DC10-28V

DC10-28V

DC10-28V

DC10-28V

DC10-28V

DC10-28V

Output current

10A

5A

1A

5A

1A

5A

1A

1A

5A

Load

24V 220V

24V 220V

24V

24V 220V

24V

24V 220V

24V

24V

24V 220V

Analog in

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Analog out

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Counting

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

2/3K

Pulse out

N/A

N/A

N/A

N/A

2/10K

N/A

2/10K

2/10K

无N/A

RS485 communication

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MODBUS

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Time

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Float point

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Capacity

8000steps

8000steps

8000steps

8000steps

8000steps

8000steps

8000steps

8000steps

8000steps

下Download Speed

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

9.6Kb

Download port

RS232

RS232

RS232

RS232

RS232

RS232

RS232

RS232

RS232

Programming software

GX Developer

/GX Works2

GX Developer

/GX Works2

GX Developer

/GX Works2

GX Developer   /GX Works2

GX Developer   /GX Works2

GX Developer   /GX Works2

GX Developer   /GX Works2

GX Developer   /GX Works2

GX Developer   /GX Works2

Stepping motor

Not supported

Not supported

Not supported

Not supported

supported

Not supported

supported

supported

Not supported

Servo motor

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Communicate with OP320

supported

supported

supported

supported

supported

supported

supported

supported

supported

Communicate with HMI

supported

supported

supported

supported

supported

supported

supported

supported

supported

Installation method

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Din Rail

Terminal width

/

/

/

/

/

/

/

/

/

Hole DIM
L*W（mm）

28*22.5

38*22.5

28*22.5

58*65

38*22.5

78*65

58*65

115*80

115*80

Overall DIM
L*W（mm）

36*73

46*73

36*73

66*73

46*73

86*73

66*73

122*87

122*87

Shell DIM
L*W（mm）

86*39*42

86*49*42

86*39*42

86*69*42

86*49*42

86*89*42

86*69*42

125*90*35

125*90*35

Seat

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Shell

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A


WS1N-14MR-S

     WS1N-14MR-S

SK222XP-14R User Manual V1.0

Upload Time： 2023-09-09

Download
